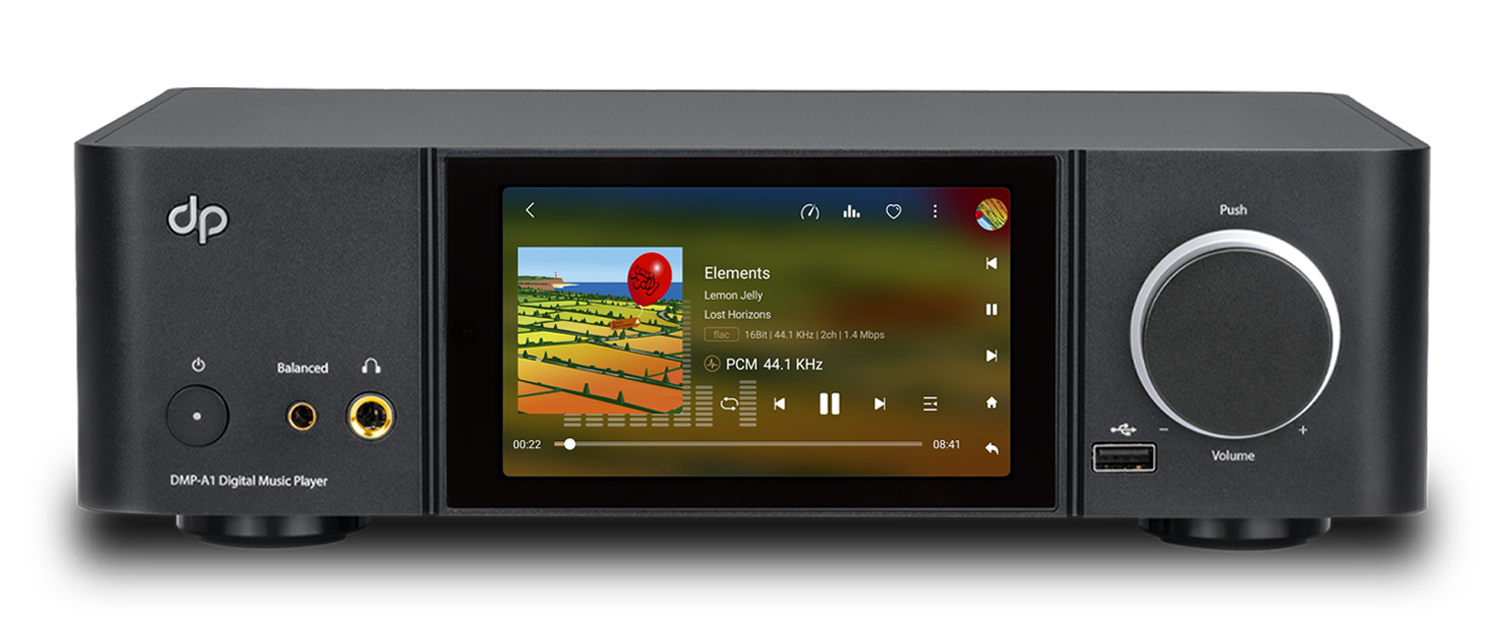

Exquisite Exterior Design Based on Premium Audio Engineering

The DMP-A1 combines a robust body structure with exquisite exterior design. It features a thickened full aluminium alloy chassis processed with high-precision CNC machining, an integrated middle frame, and finished with an exceptional matte metal surface texture. The rounded corners offer excellent chassis strength, which is clamped top and bottom to create the perfect platform for the electronics. The silky-smooth volume knob, with customisable colourful “Dynamic Light Ring” lighting effects, adds a touch of style to the overall package.

Combining classic high-quality design with modern elements, the DMP-A1 perfectly meets the preferences of audiophiles and music lovers alike.

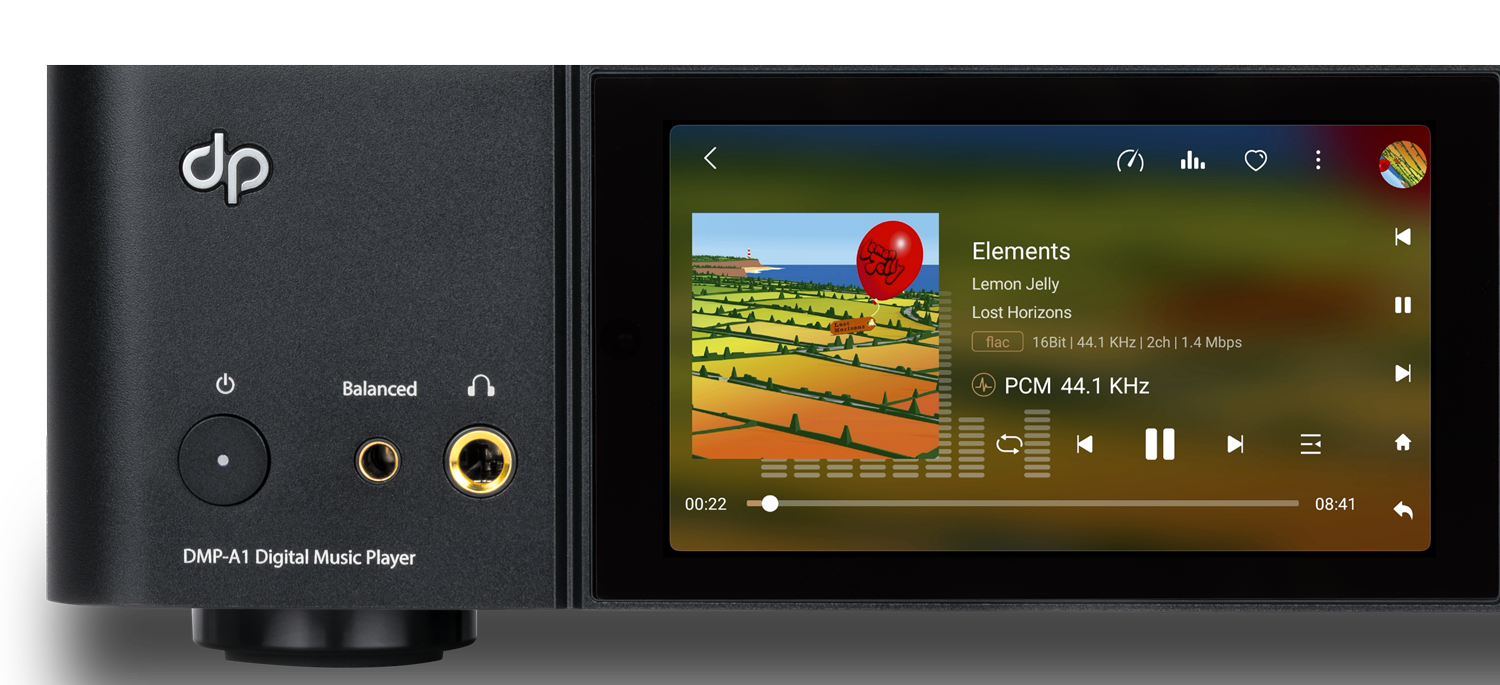

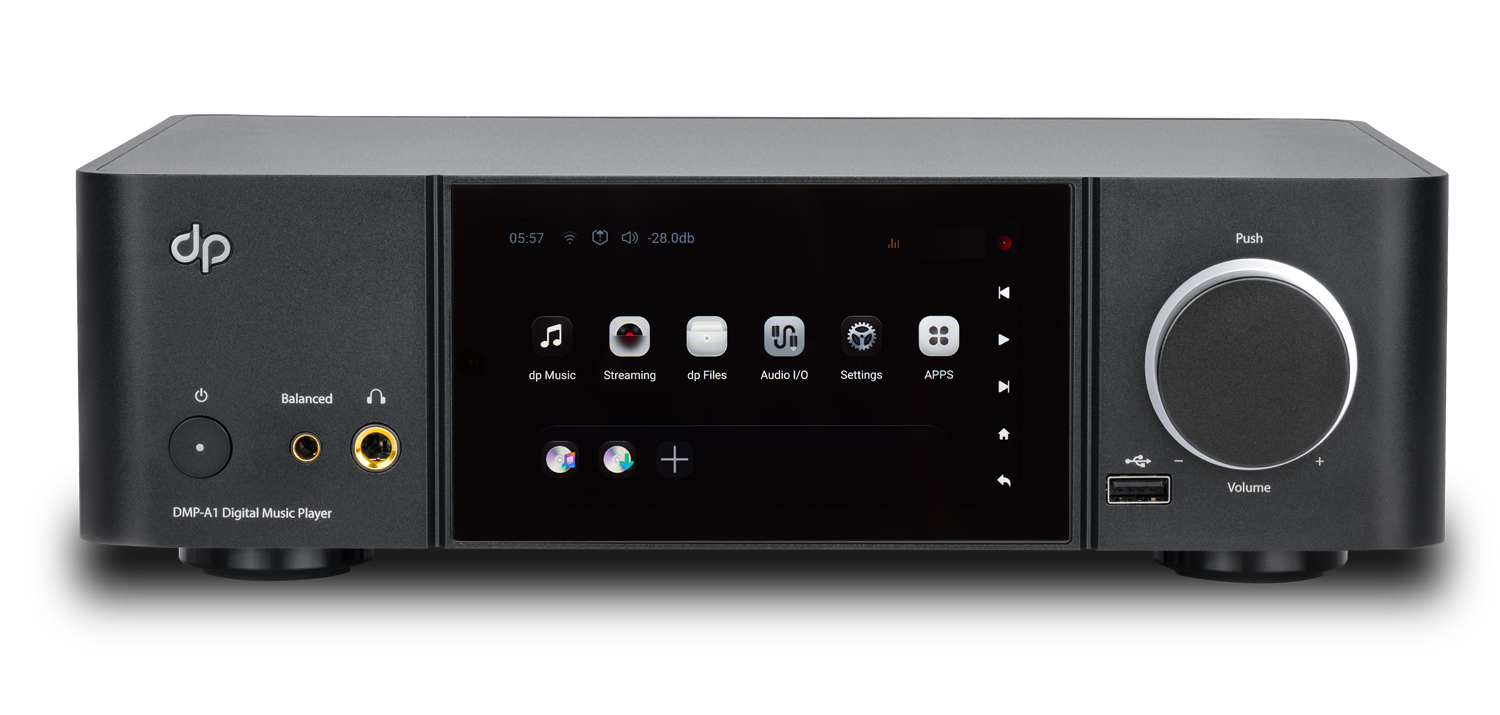

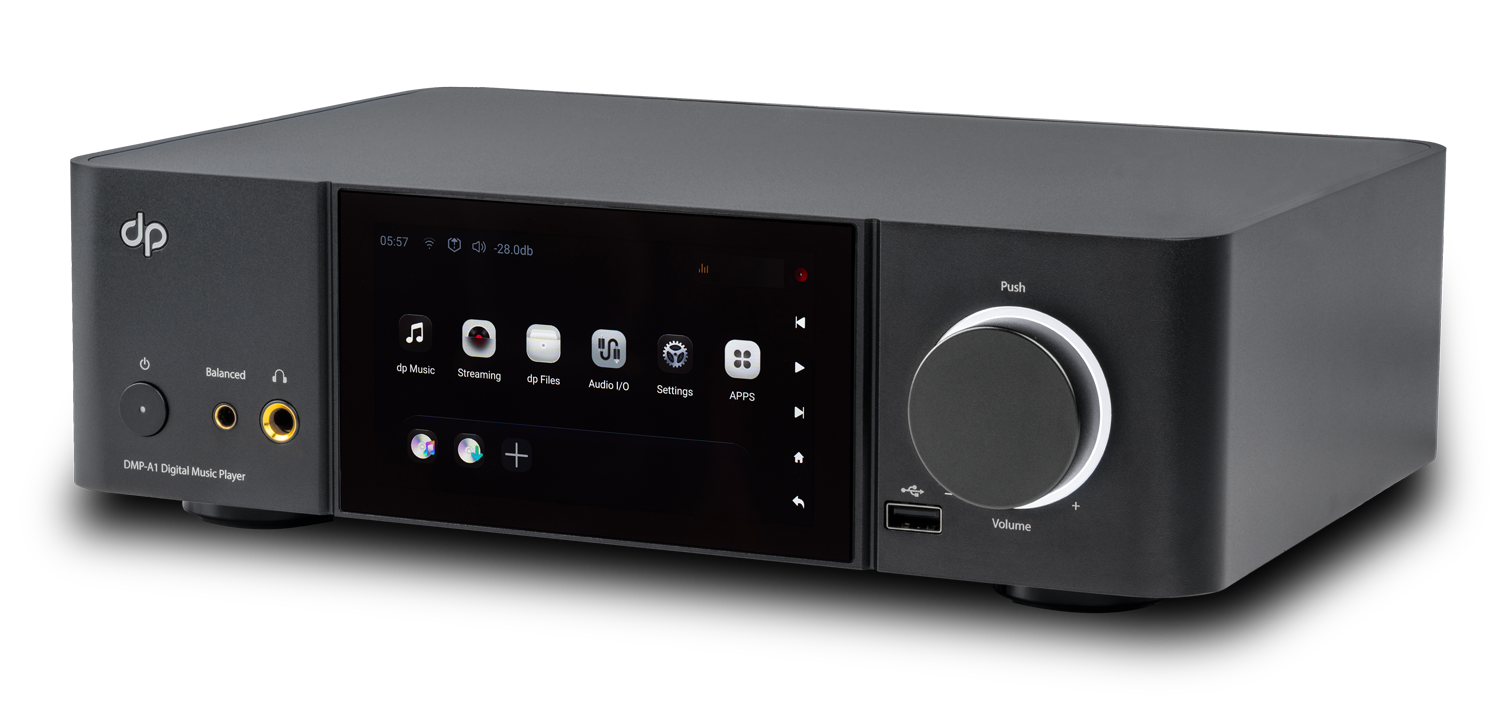

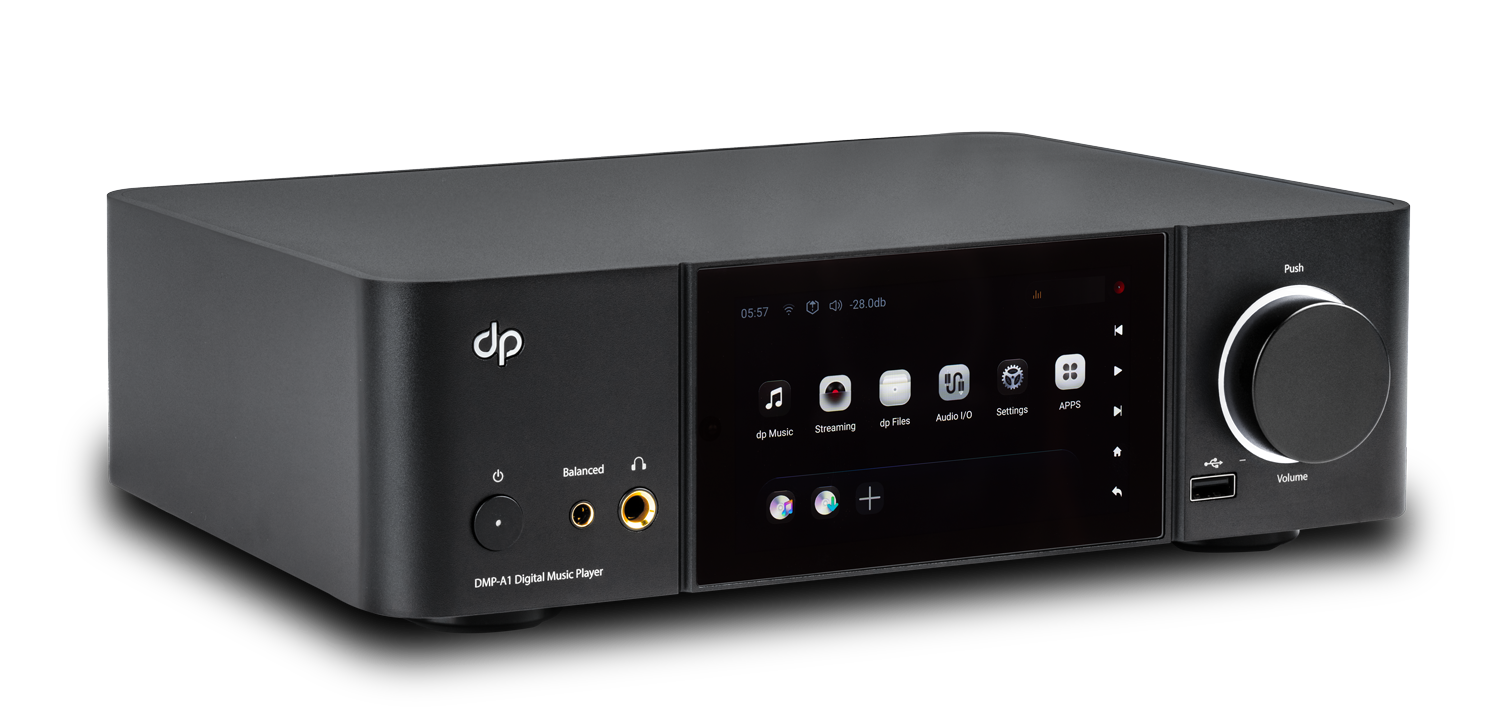

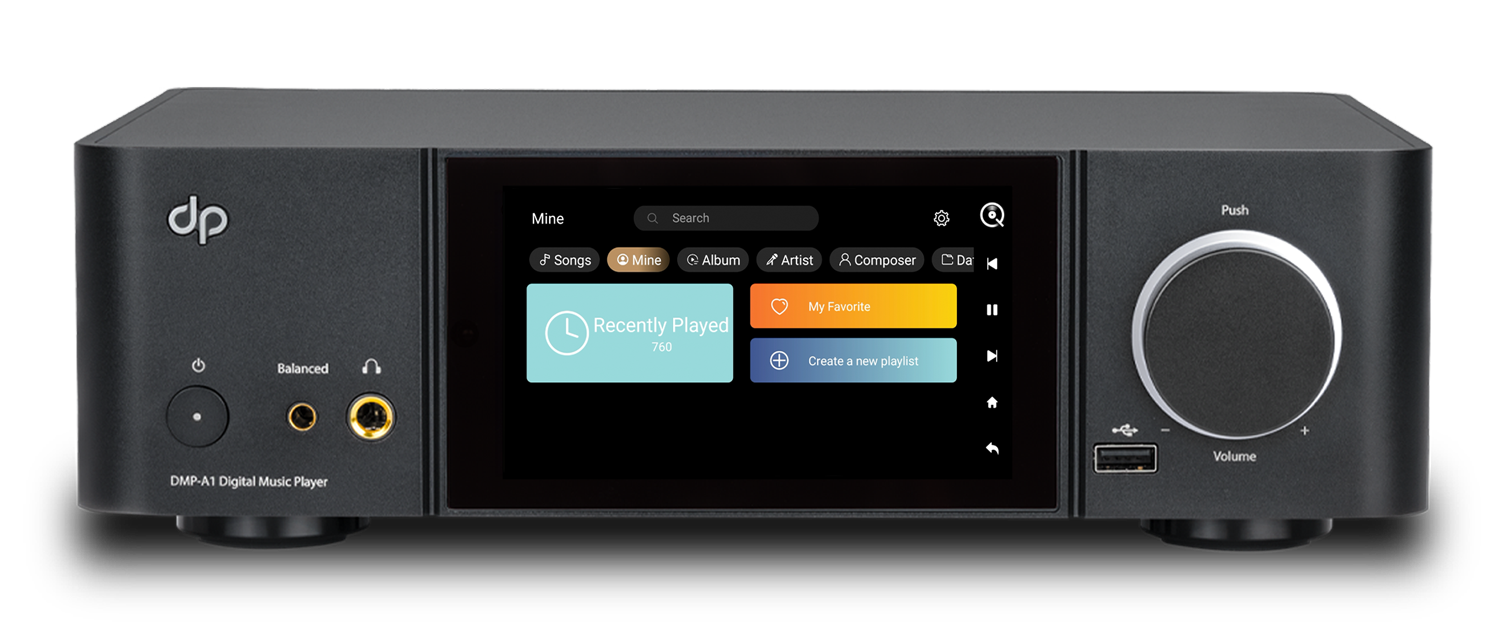

The DMP-A1 features a 5-inch 1080P LCD color touchscreen with high clarity display, smooth capacitive touch control, user-friendly UI interface and powerful digital player functionality, delivering both visually stunning and intuitive user interaction.

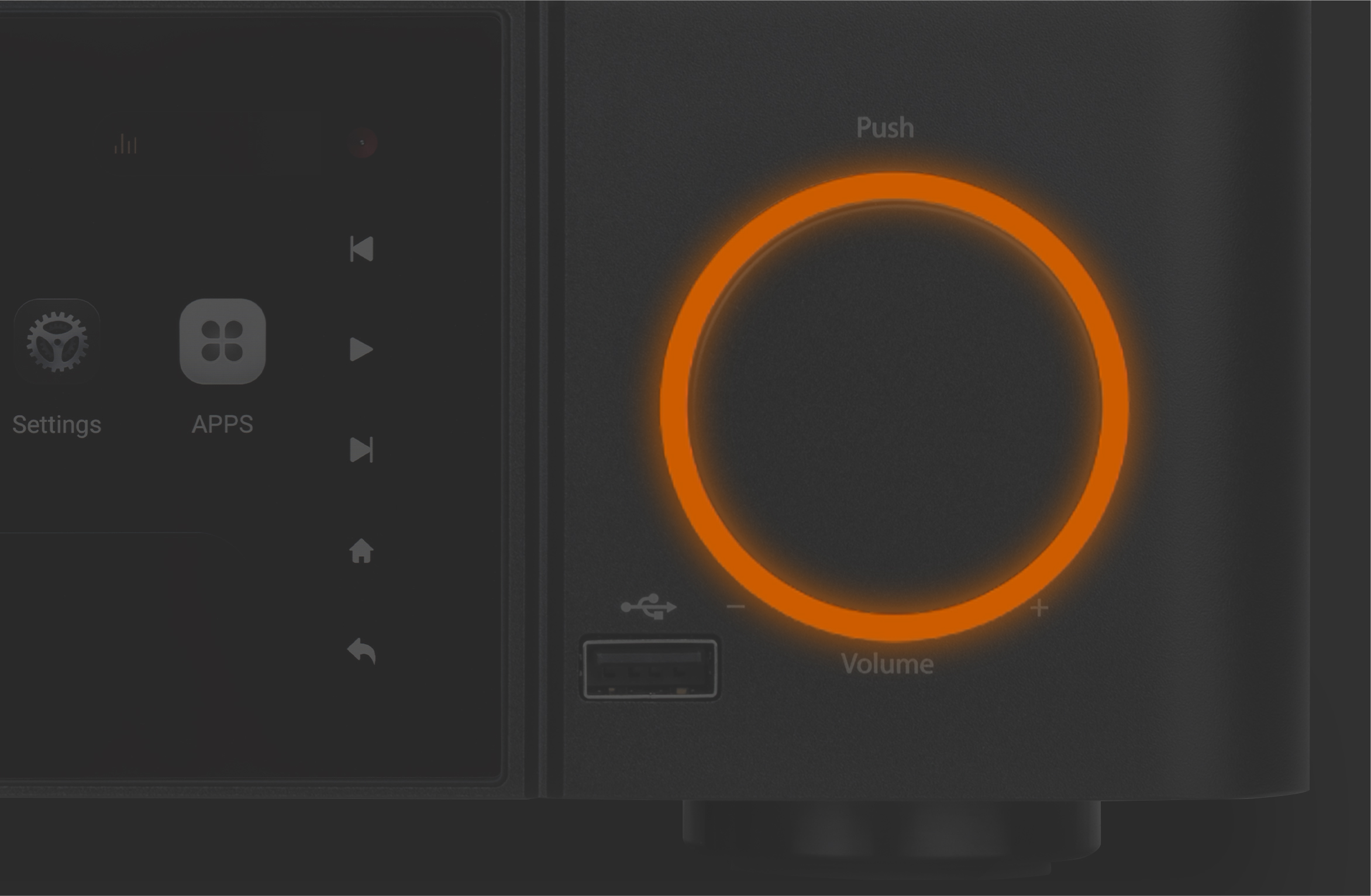

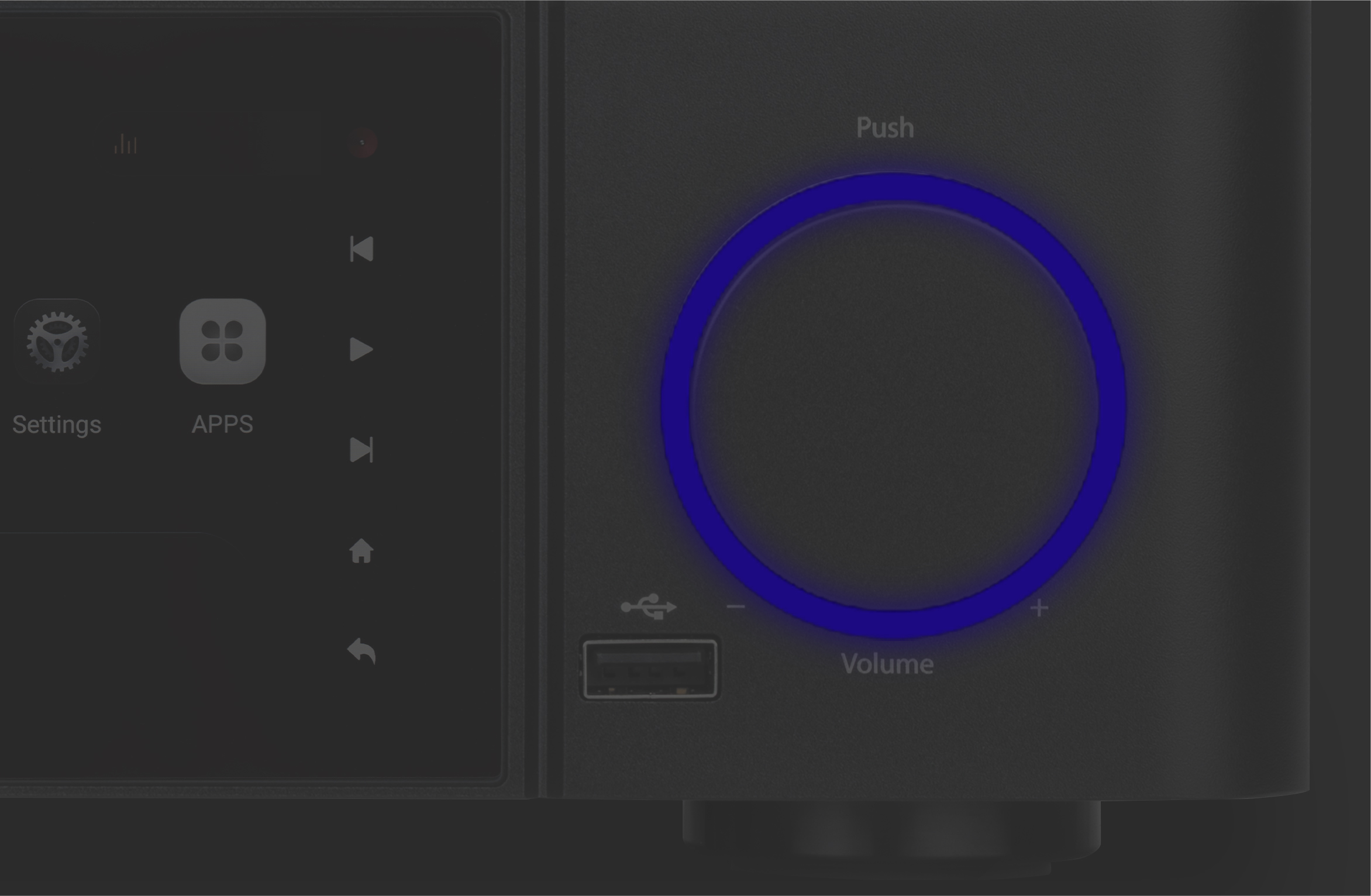

“Smart Ring” Knob Backlighting for a More Dynamic Music Experience

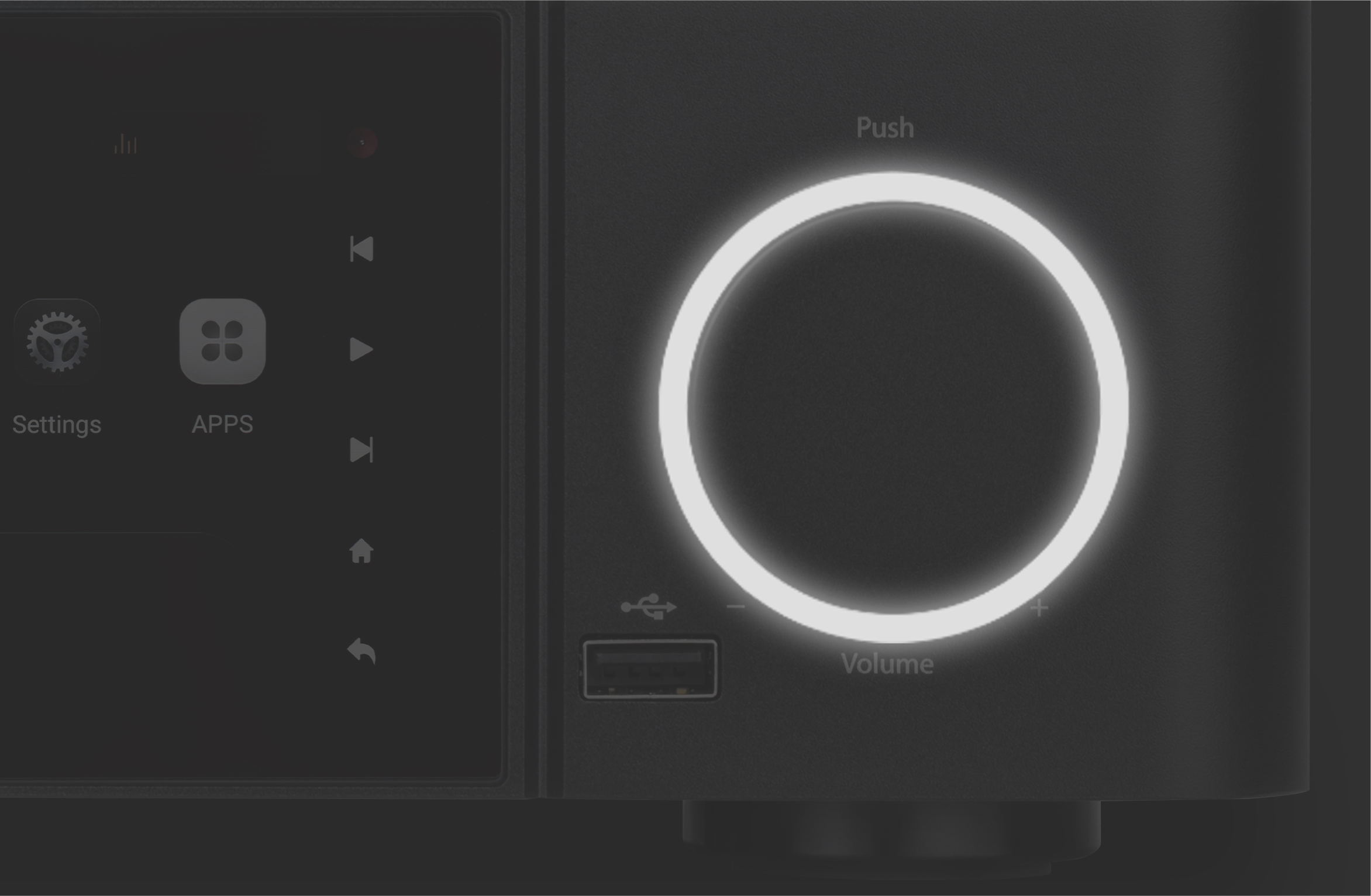

The volume knob on the front panel of the DMP-A1 features a “Smart Ring” design element, serving as both a device status indicator and ambient lighting. It supports customizable multi-color lighting effects: for example, when the device boots up, the ring glows with a breathing effect, and during music playback, it can ‘dance’ to the rhythm of the audio spectrum, creating a fully immersive listening atmosphere.

Built-in High-Performance Balanced Headphone Amplifier

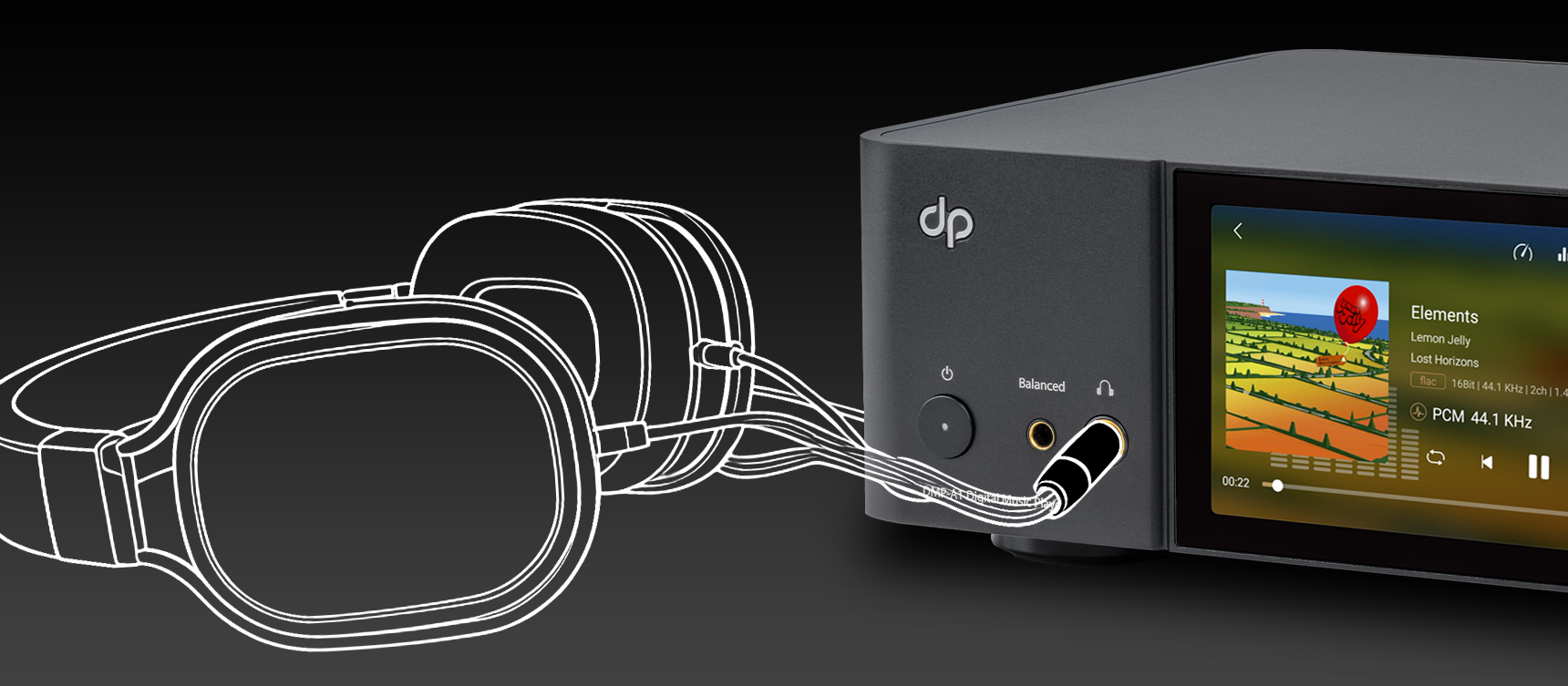

The DMP-A1 incorporates a professional headphone amplifier offering both 6.35mm single-ended and 4.4mm fully balanced output options. With outstanding specifications and strong driving capability with two gain levels (high/low), it can easily drive various headphones with impedance loading from 16-300Ω.

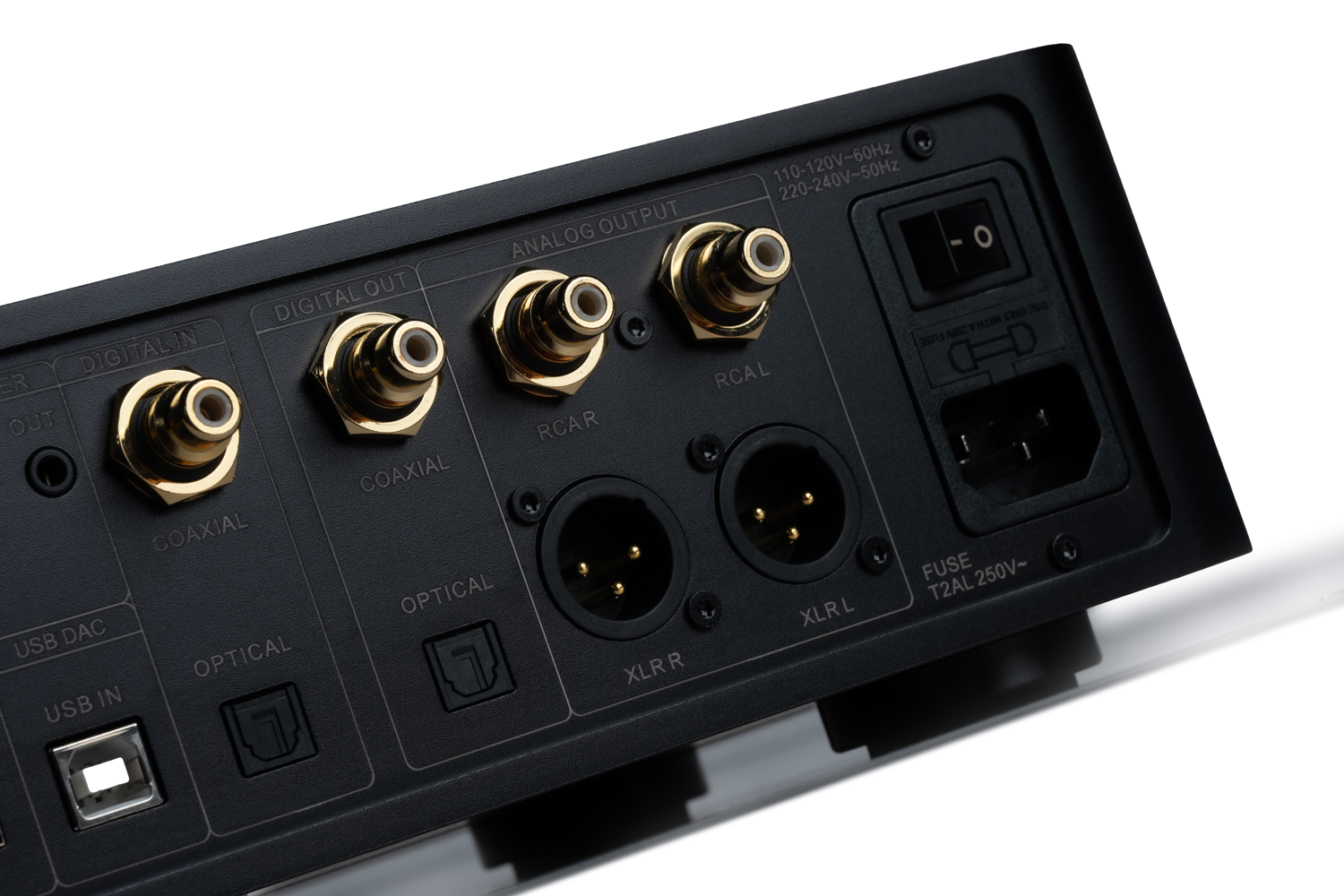

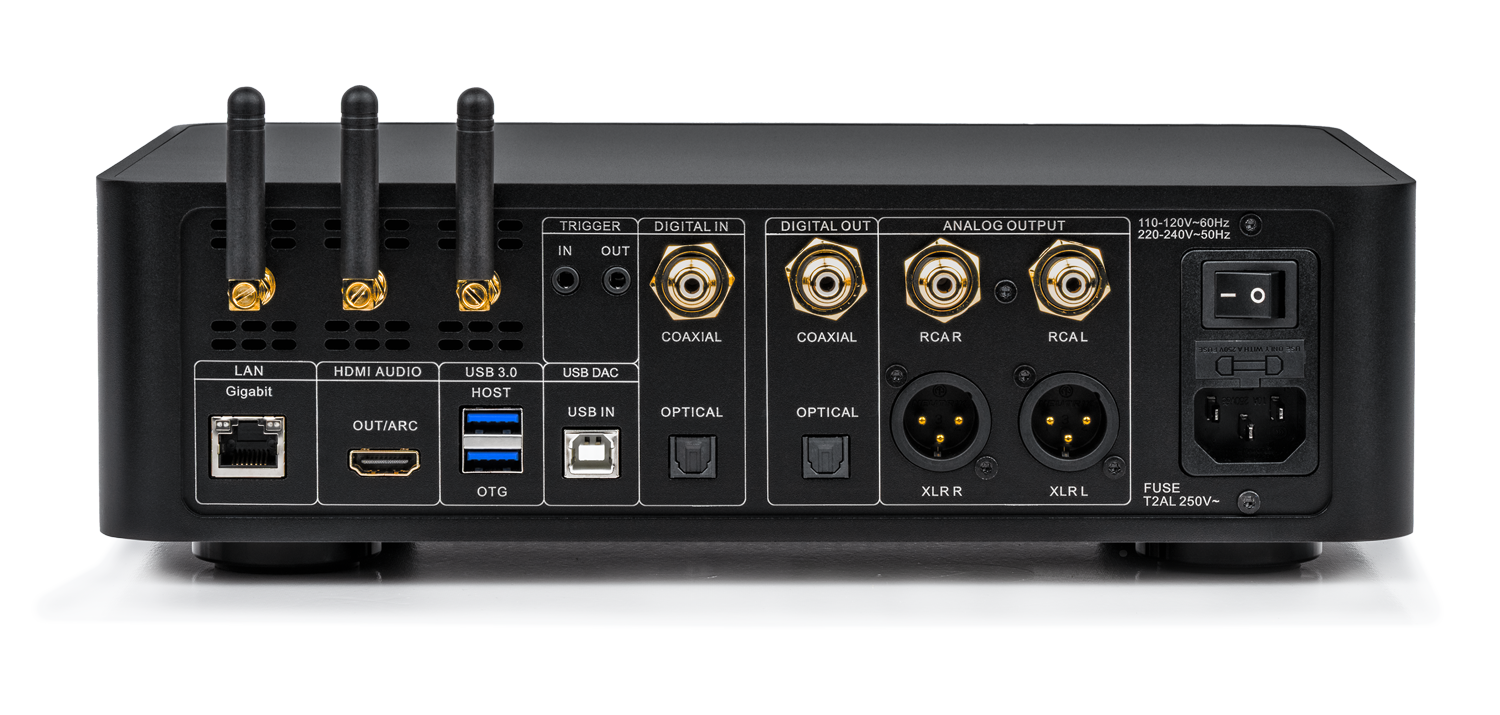

Uncompromising Connectivity

The DMP-A1 is designed as the central hub of your audio system. It integrates a full range of digital inputs — including Optical, Coaxial, and HDMI ARC — to connect all your sources. For output, it provides both RCA and fully balanced XLR preamp connections, ensuring clean, high-fidelity signal transmission. With built-in high-speed wired and wireless networking, along with system trigger and USB expansion ports, it delivers both versatility and precise control, forming the reliable core of a modern listening setup.

Quad-core 64-bit ARM Cortex-A55 processor

Driven by a powerful quad-core processor, the DMP-A1 is capable of seamless multitasking and decoding. From loading massive files to handling high-resolution audio streams, the DMP-A1 takes every task without breaking a sweat.

Experience effortless performance

4GB memory ensures seamless multitasking and lightning-fast data access, while 64GB internal storage offers plenty of room for all of your content. Together, they deliver quicker processing, lower latency and a lag-free experience.

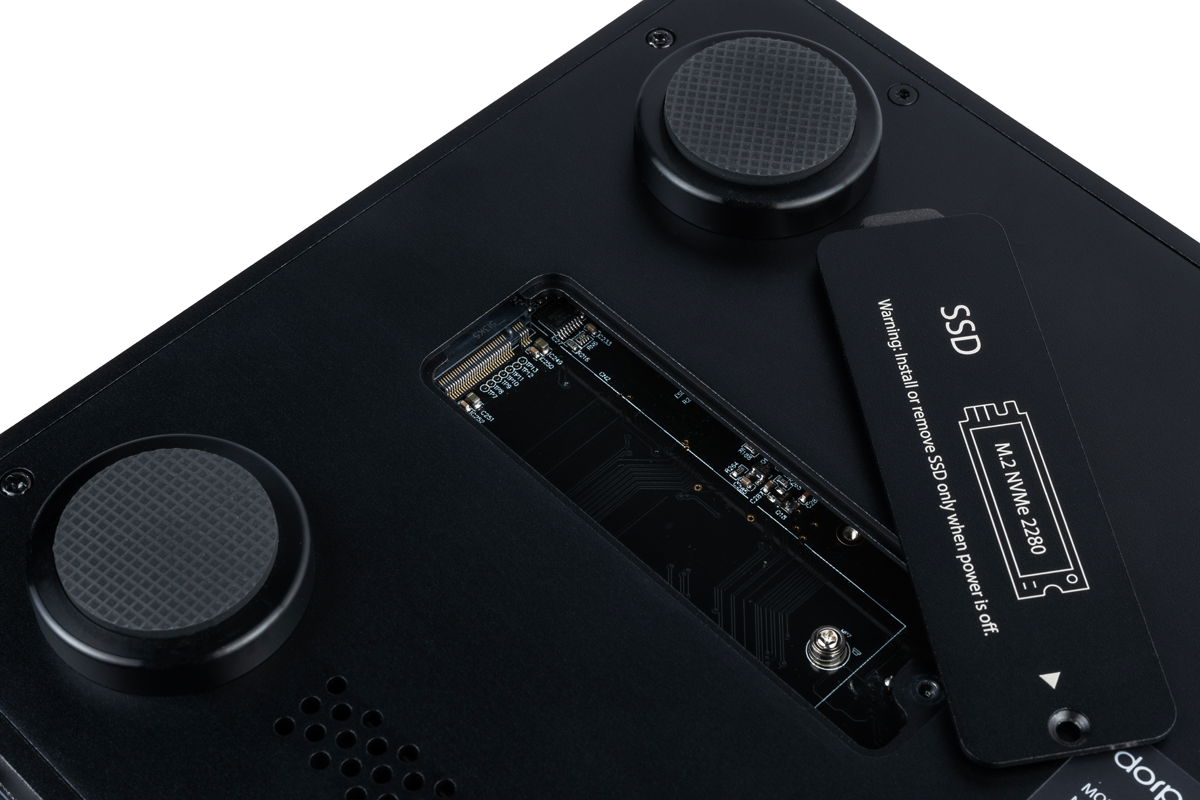

Built-in M.2 SSD Slot for More Flexible Expansion

For high-quality media storage, in addition to providing abundant USB expansion and network storage support, the DMP-A1 features an externally accessible, tool-free M.2 NVME 3.0 2280 SSD slot design. Users can easily install or replace SSDs without disassembling the unit, supporting expansion up to 4TB SSD capacity. This delivers faster, more stable, and completely silent local high-quality storage.

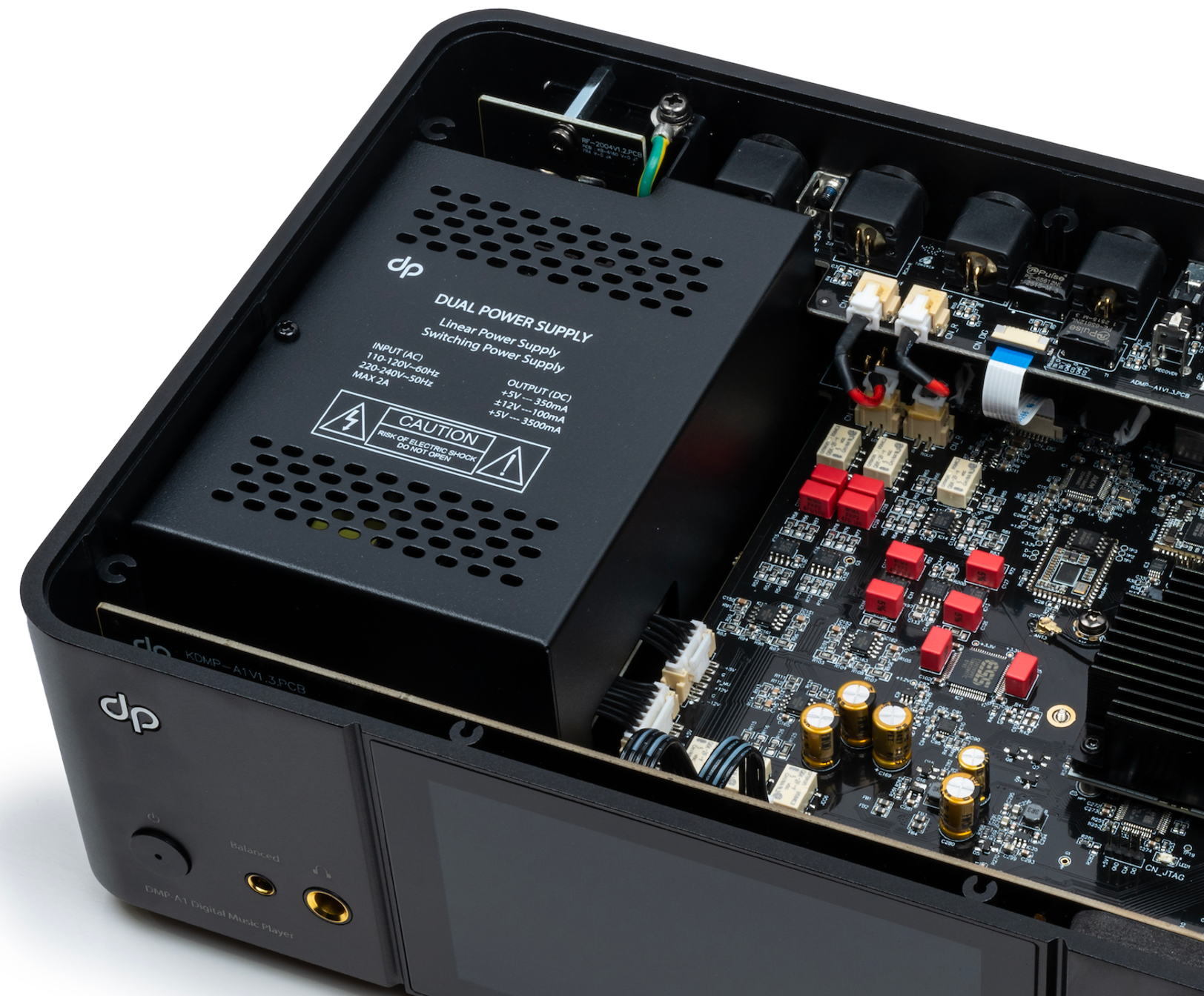

High-Performance Linear Power Supply + Low-Noise Switching Power Supply

The DMP-A1 implements a dual power supply design by combining a high-performance linear power supply with a low-noise switching power supply. The low-noise regulated power module primarily supplies digital circuits, while the professional linear power supply is specifically designed for analog circuits, providing smaller ripple and interference to ensure purer power for audio circuits, a quieter background, and superior sound clarity. Additionally, the entire power module features fully-enclosed metal shielding to effectively isolate interference between power and signal circuits.

The DMP-A1 utilises ESS’s latest flagship ES9039S Pro DAC chip, renowned as an industry performance benchmark. With lower total harmonic distortion levels, it ensures minimal noise and distortion, delivering extraordinary musical quality with an engaging and fatigue-free sound reproduction – providing you with an authentic high-fidelity music experience.

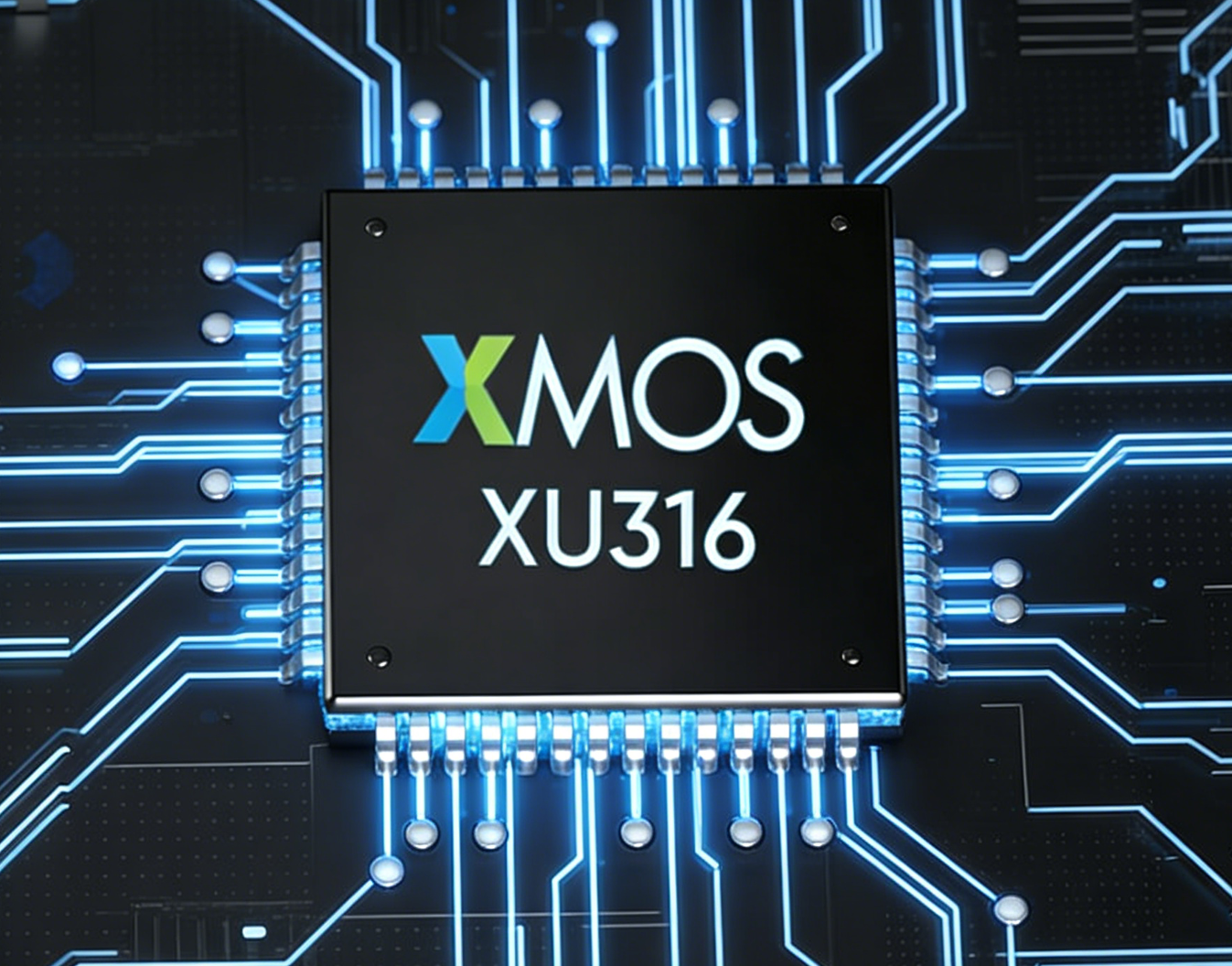

The DMP-A1 employs the third-generation XMOS 316 audio processor, featuring higher processing speeds and increased USB bandwidth to guarantee lossless transmission of high-definition audio data. The USB interface supports up to DSD512 Native, PCM768@32bit formats, and full MQA decoding. Optical and coaxial ports also support DSD64 (DoP) and PCM192@24Bit.

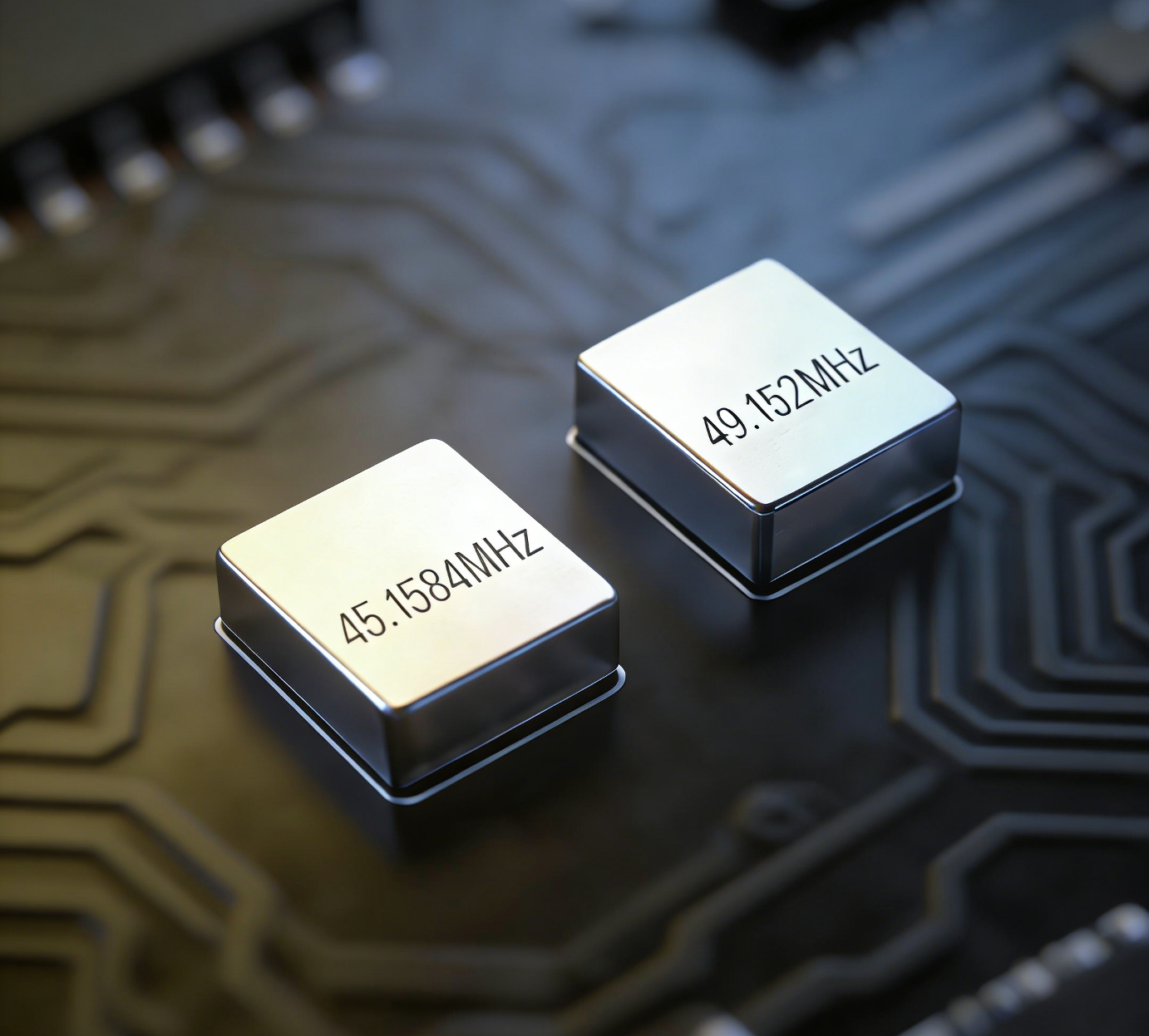

The DMP-A1’s audio clock section adopts a low-jitter, high-precision dual-clock design. Two high-precision crystal oscillators (45.1584MHz and 49.152MHz) respectively manage 44.1KHz and 48KHz multiple sampling frequencies, effectively reducing jitter for more accurate audio decoding.

The DMP-A1‘s analog audio circuit adopts a fully balanced amplification architecture. From DAC to all analog output ports (XLR, RCA, headphones), signals are processed through fully balanced differential amplification circuits, eliminating common ground crosstalk, improving channel separation, and providing better noise immunity to prevent unwanted noise generation. To avoid potential signal interference when using RCA and XLR outputs simultaneously, independent output selection is supported to ensure higher audio specifications and better sound quality. The fully balanced preamp circuit supports refined preamp volume adjustment without requiring additional external preamplifiers.

The DMP-A1‘s analog output circuit employs meticulously selected premium components from around the world to achieve monitor-grade audiophile sound quality. No expense was spared to deliver purer, more authentic sound reproduction.

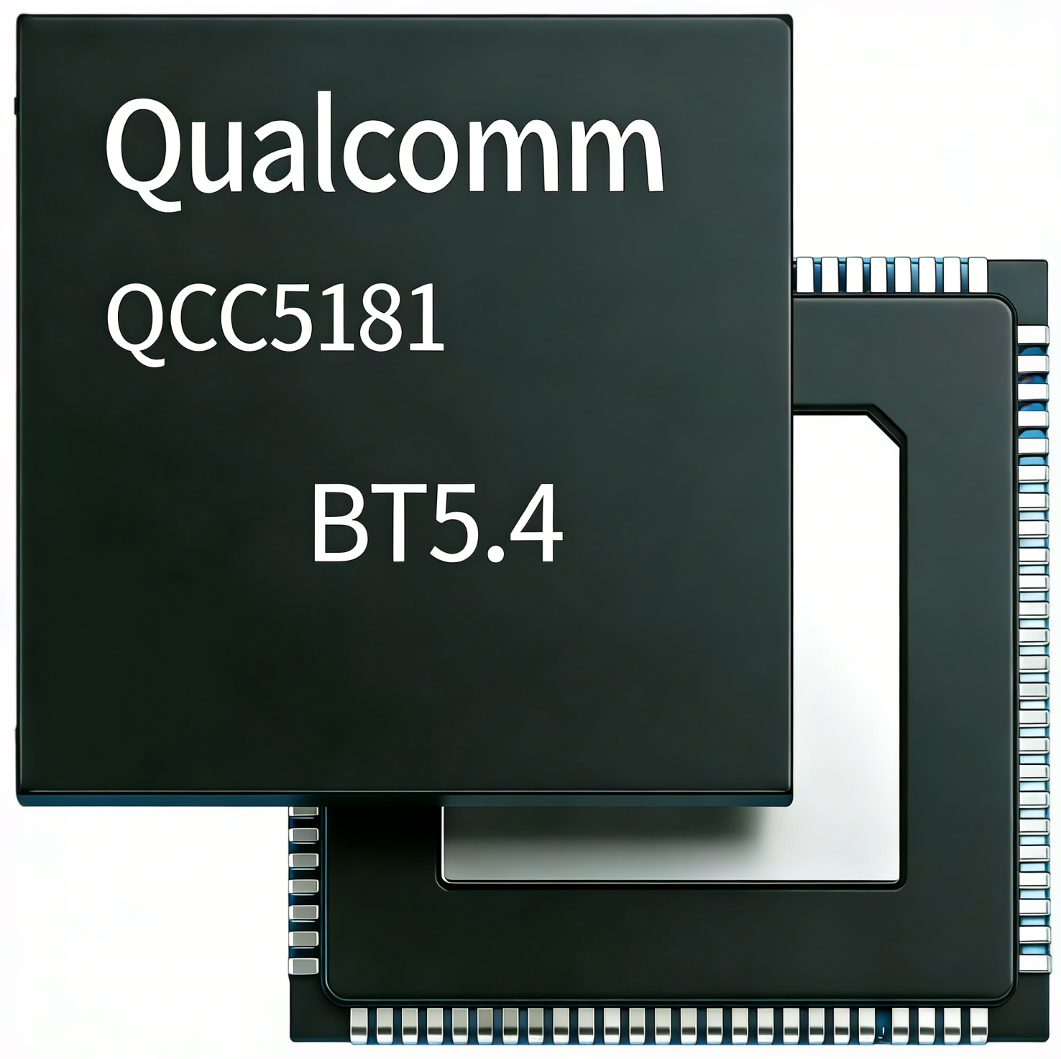

The DMP-A1’s Bluetooth audio receiver features a strong performance Qualcomm QCC5181 Bluetooth 5.4 module supporting numerous codecs including AAC and SBC etc. Supporting up to 96kHz/24bit audio transmission, it enables convenient wireless playback from smartphones, computers or tablets, whilst delivering CD-quality listening experience.

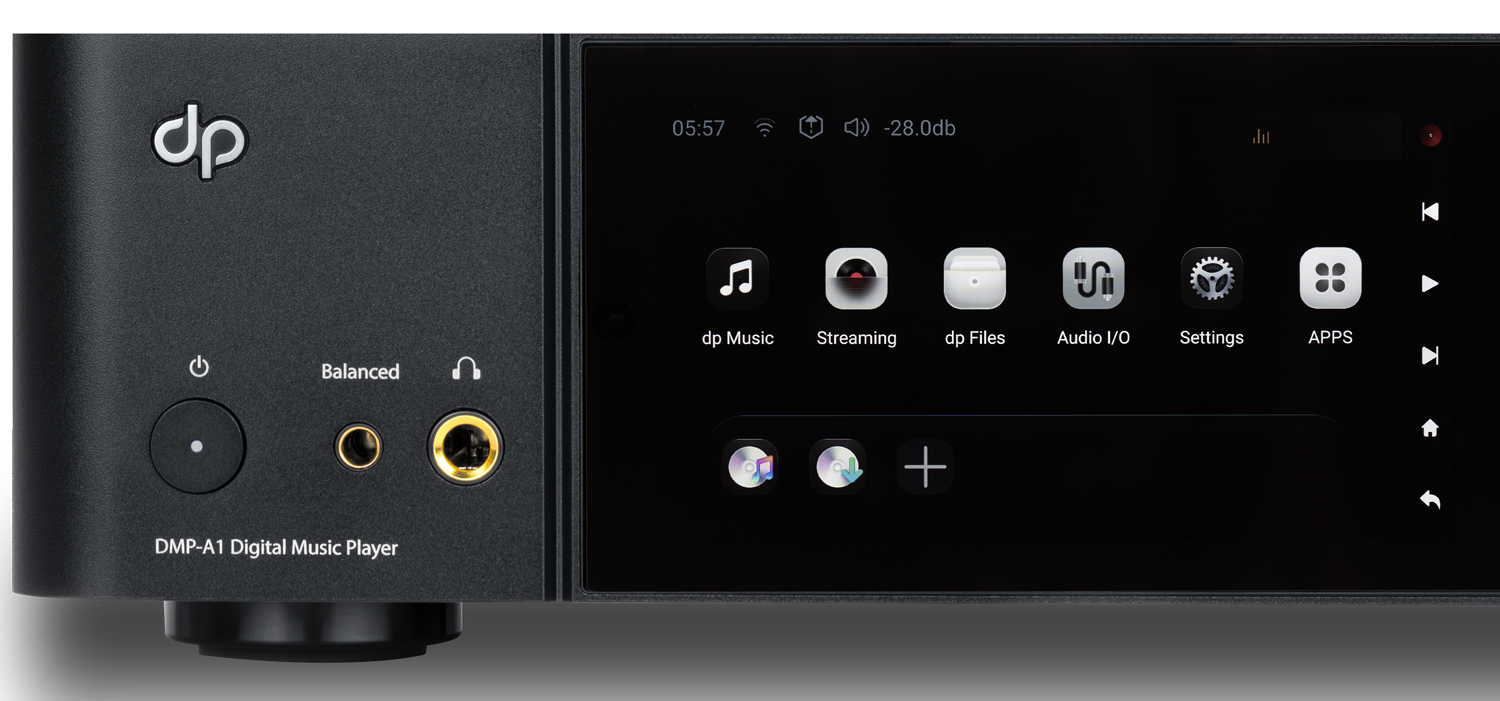

The DMP-A1 has a deeply customised and dedicated FunplayUI system for digital music playback products based on the Android 12 platform, featuring an exquisite dp desktop interaction system and a powerful multi-play music library matching system, allowing you to quickly and simply immerse yourself in the music.

The DMP-A1 also serves as a powerful streaming media player, with built-in global mainstream online music services such as Tidal, Spotify, Qobuz, Deezer, Apple Music Highresaudio, and Amazon.

*Streaming services will be installed and added over time according to the progress of certification via over the air firmware updates.

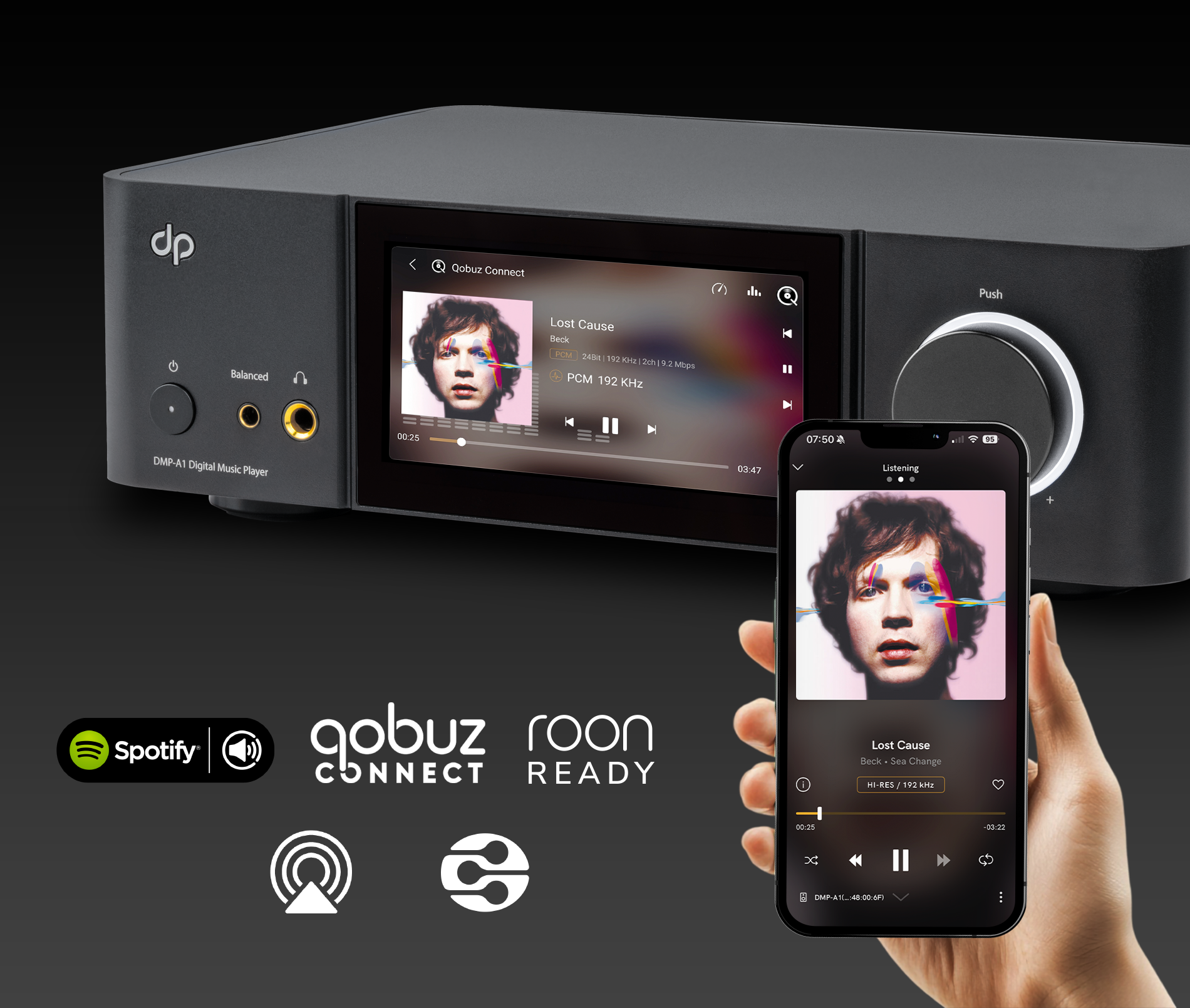

Rich Network Streaming and Convenient Mobile Device Push Playback

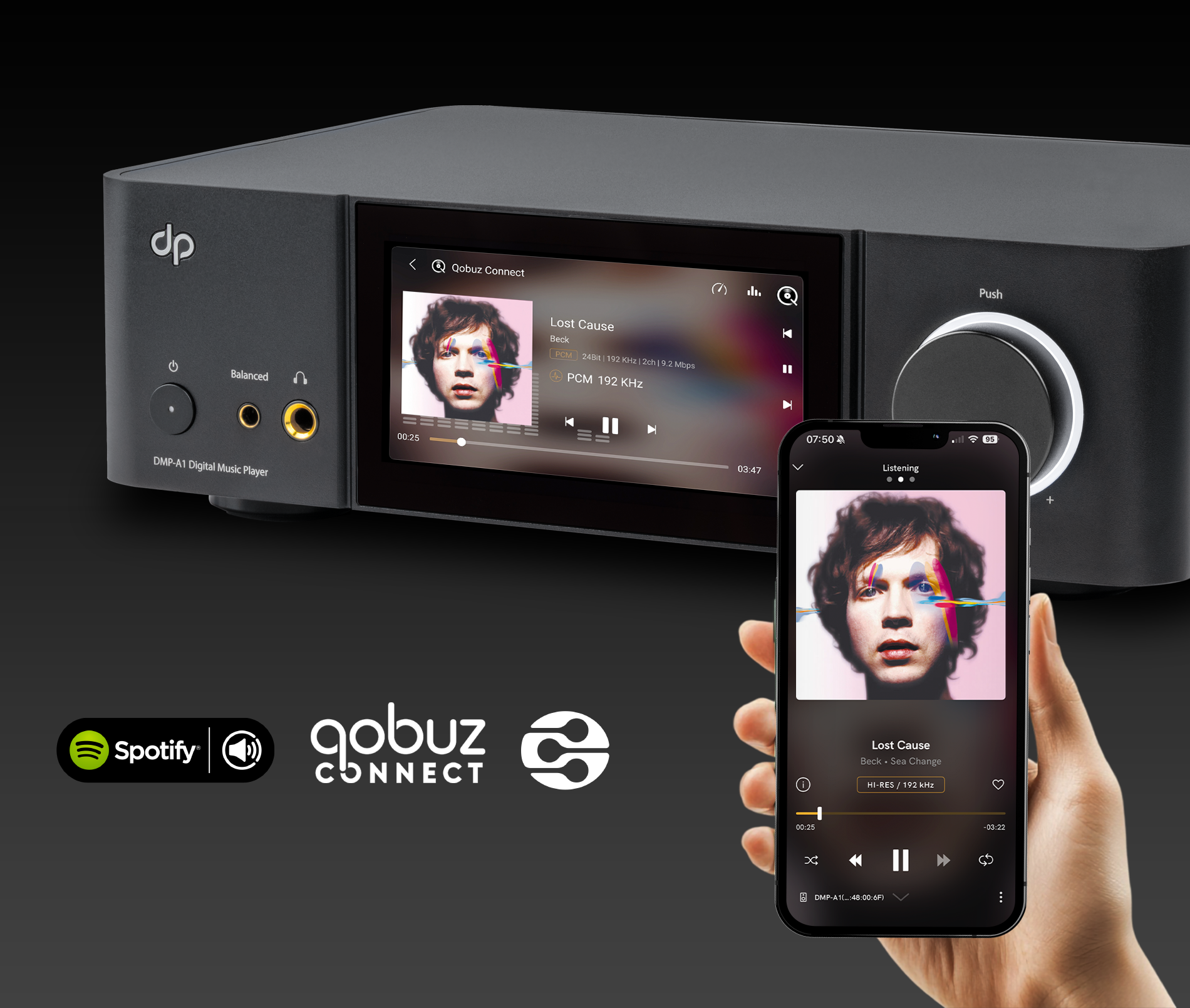

The DMP-A1 also supports network music streaming push playback from mobile devices via Roon Ready, Spotify Connect, Qobuz Connect, AirPlay, DLNA, Bluetooth and more.

*Network streaming will be installed and added over time according to the progress of certification via over the air firmware updates

Intelligent Music Library Matching and Management Features

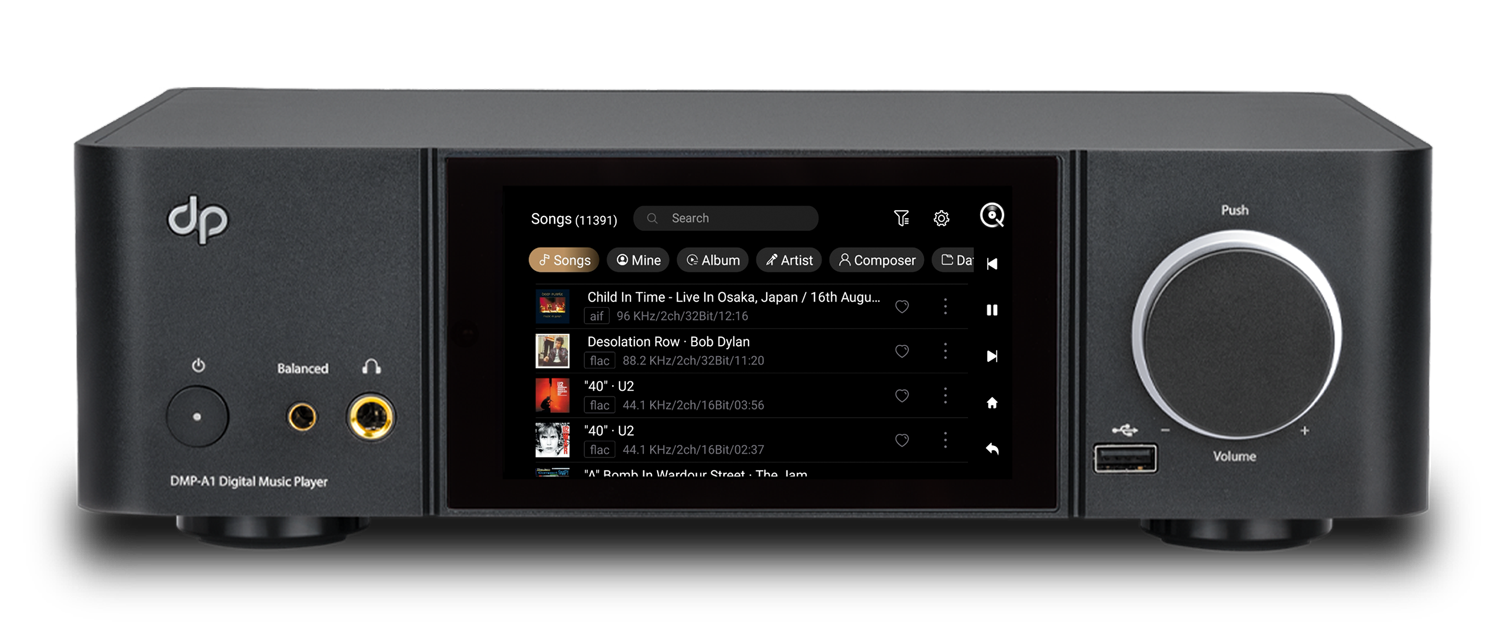

The dp Music Player is not only a professional music player compatible with all types of lossless formats, but also an intelligent music management software. It supports online data matching, helping you accurately find locally stored songs, including dynamic lyrics, album and artist information, and more. For vast collections of local music, it automatically categorises them by album, genre, artist, and sampling format. It also supports user-friendly features such as creating favourite playlists and precise song searches, meeting the demands of even the most ardent audiophiles.

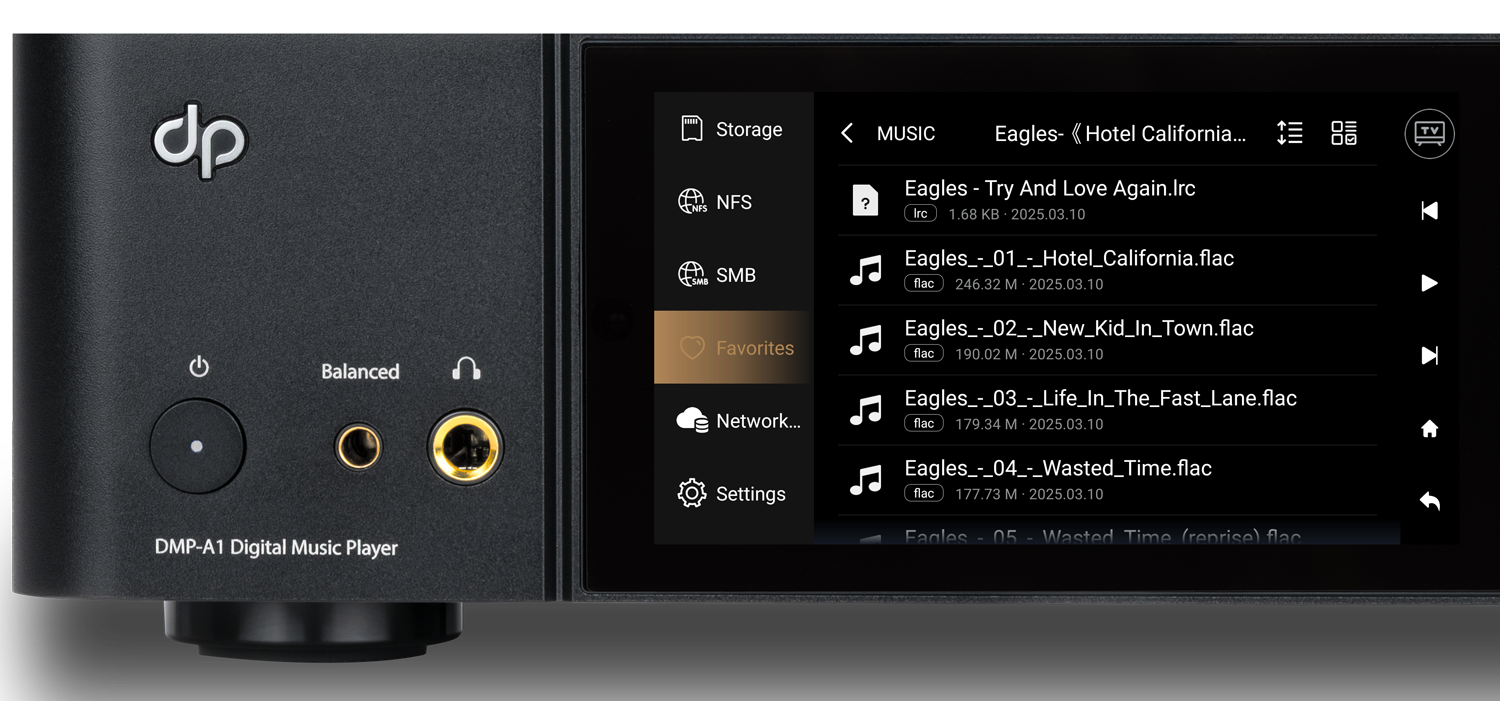

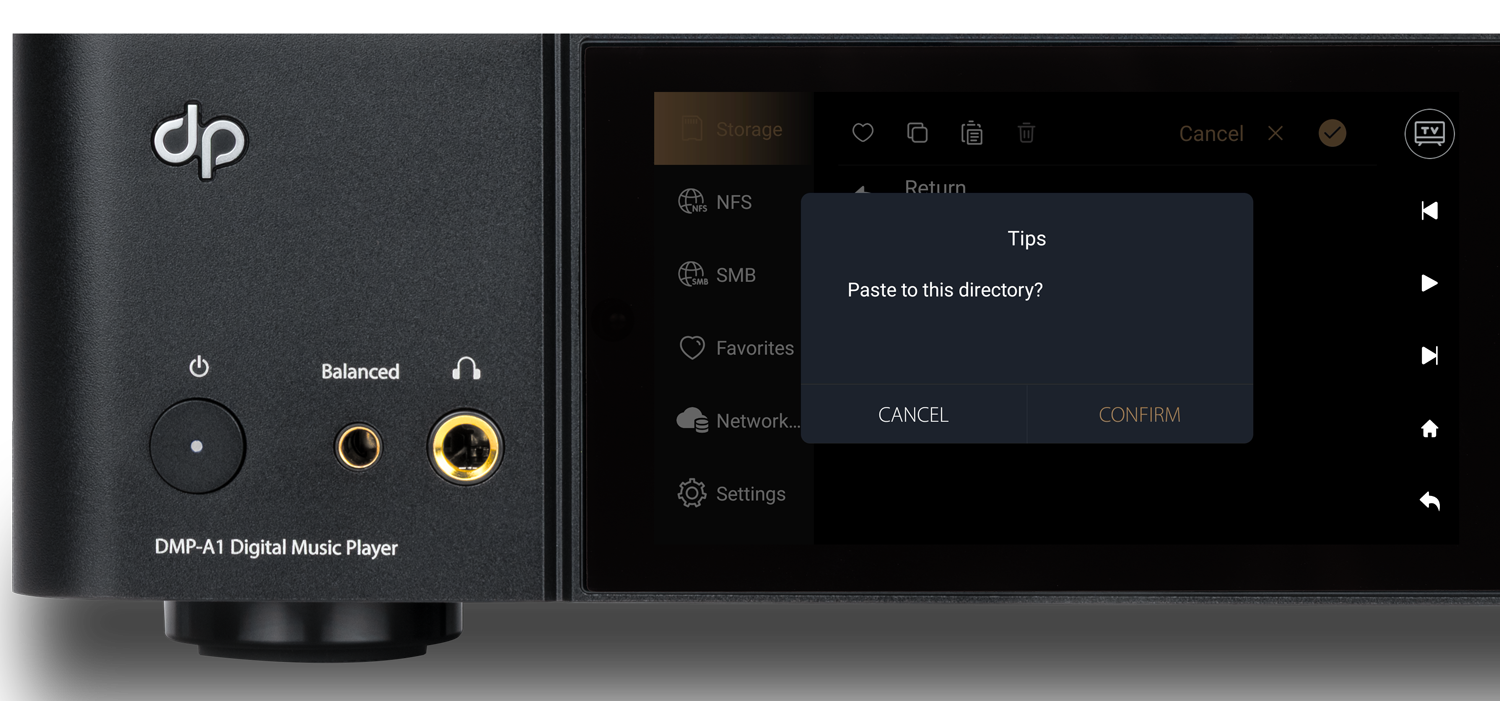

Powerful dp File Manager for Easier File Operations

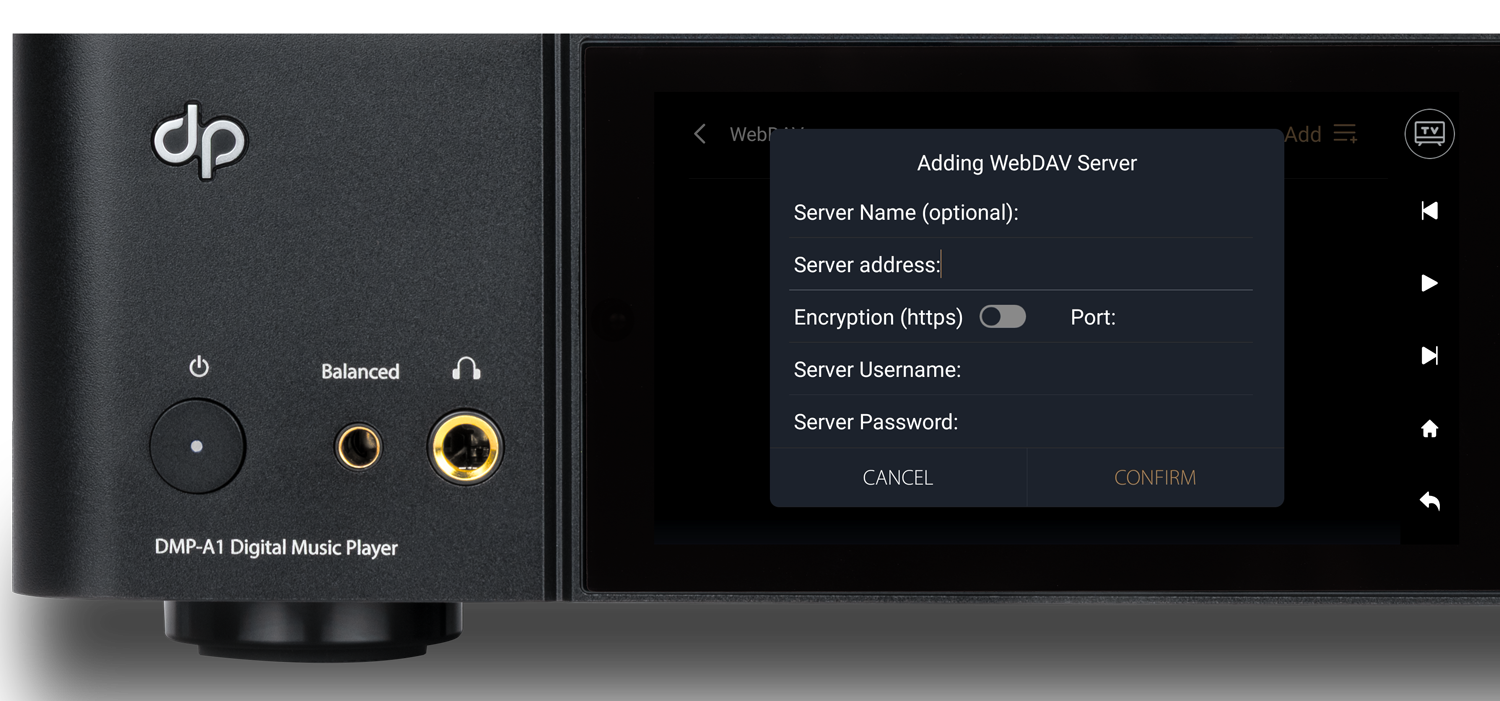

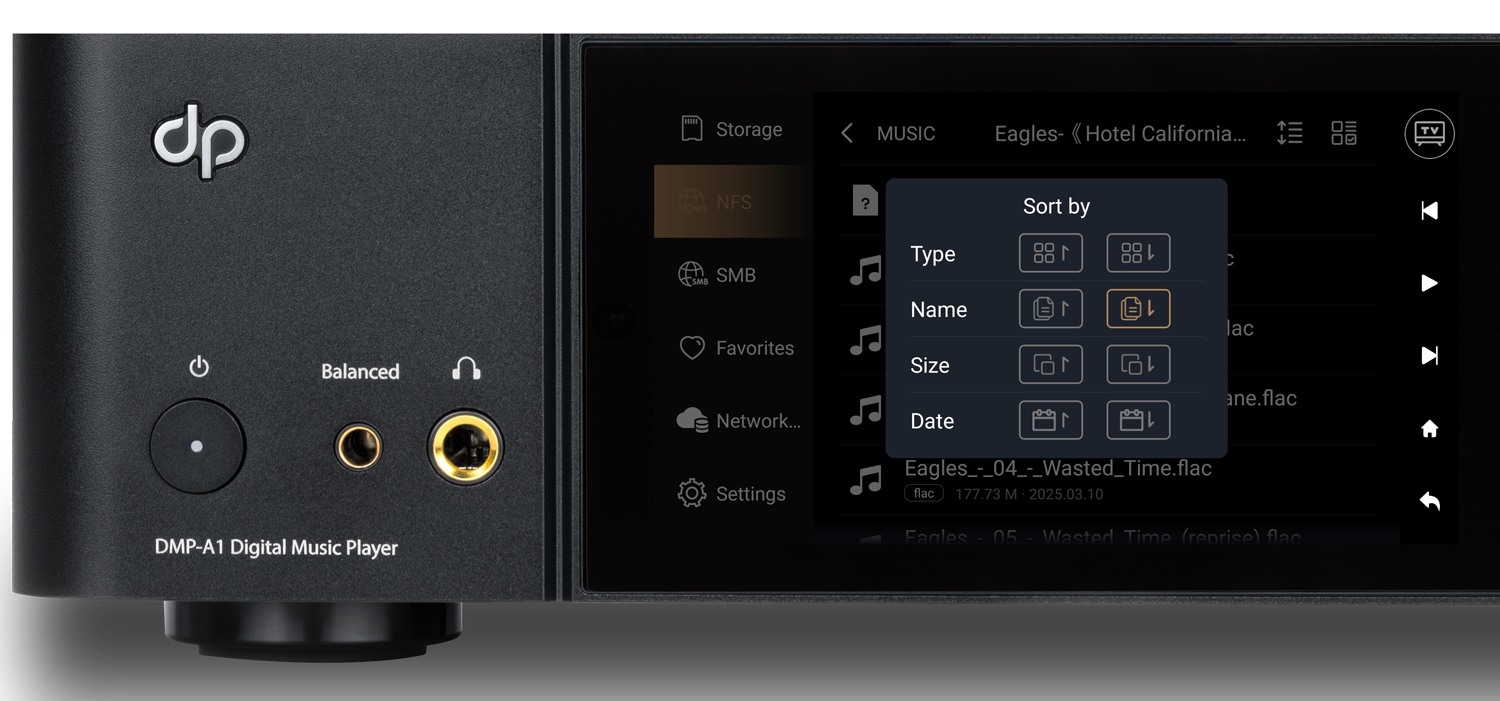

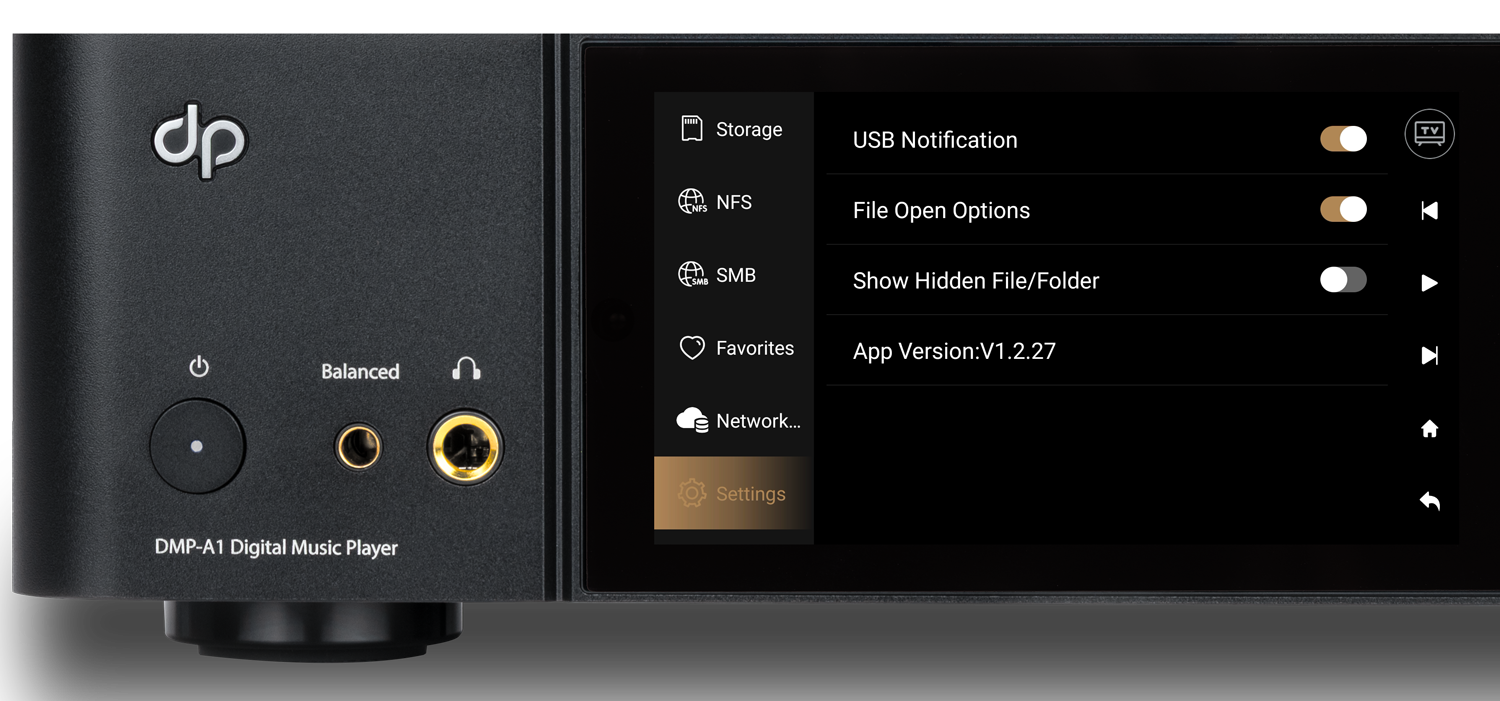

The dp File Manager supports massive local storage, network-attached NAS, and various cloud storage mounts for access and management. It enables flexible file operations such as edit, copy, paste, delete, and favourites, delivering an efficient and user-friendly file management experience.

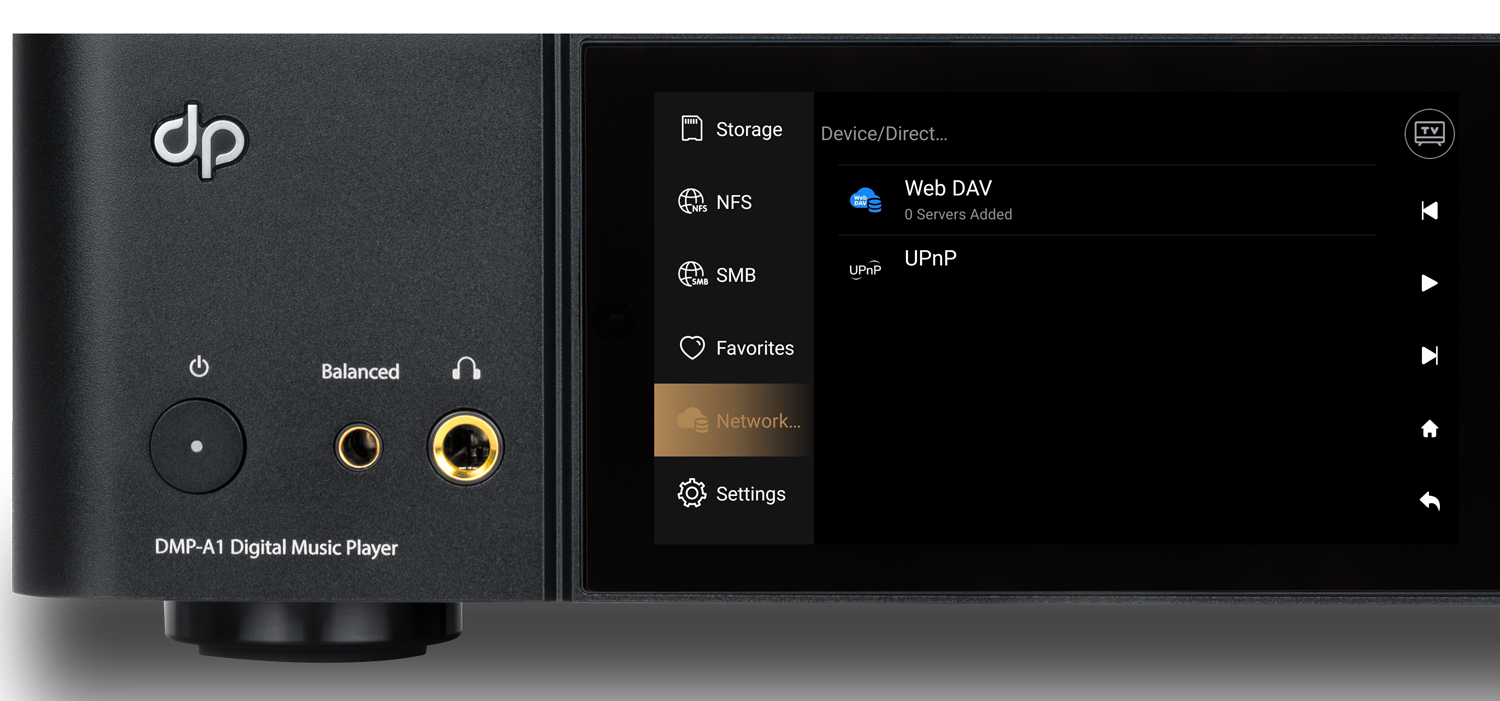

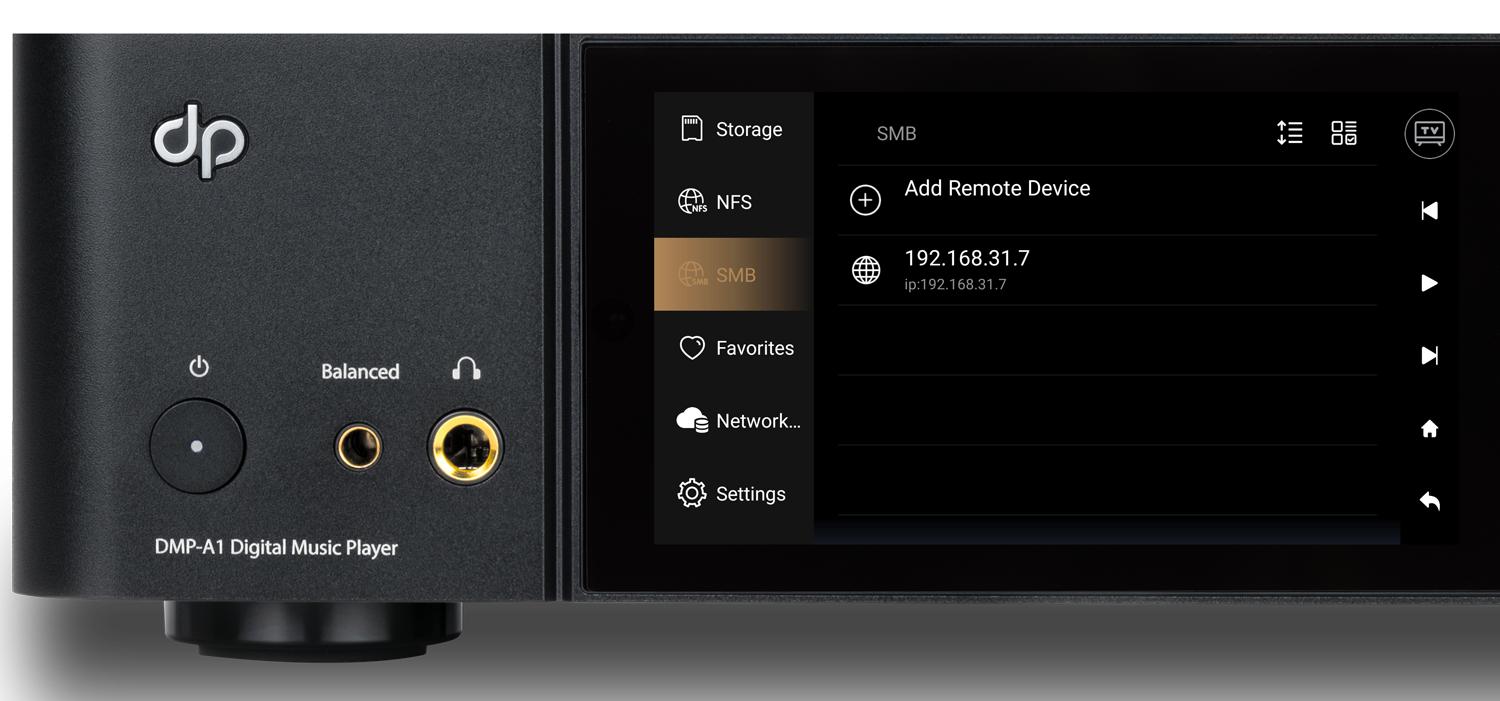

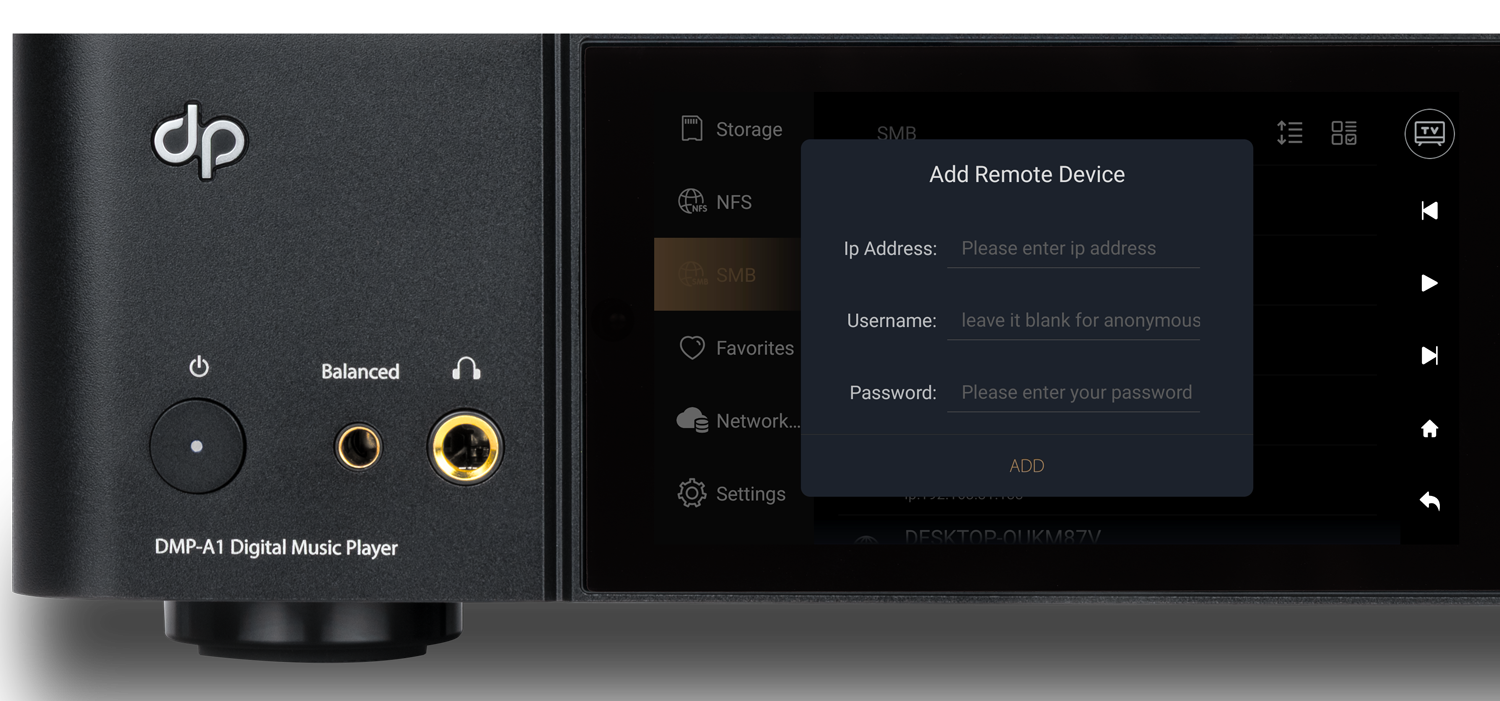

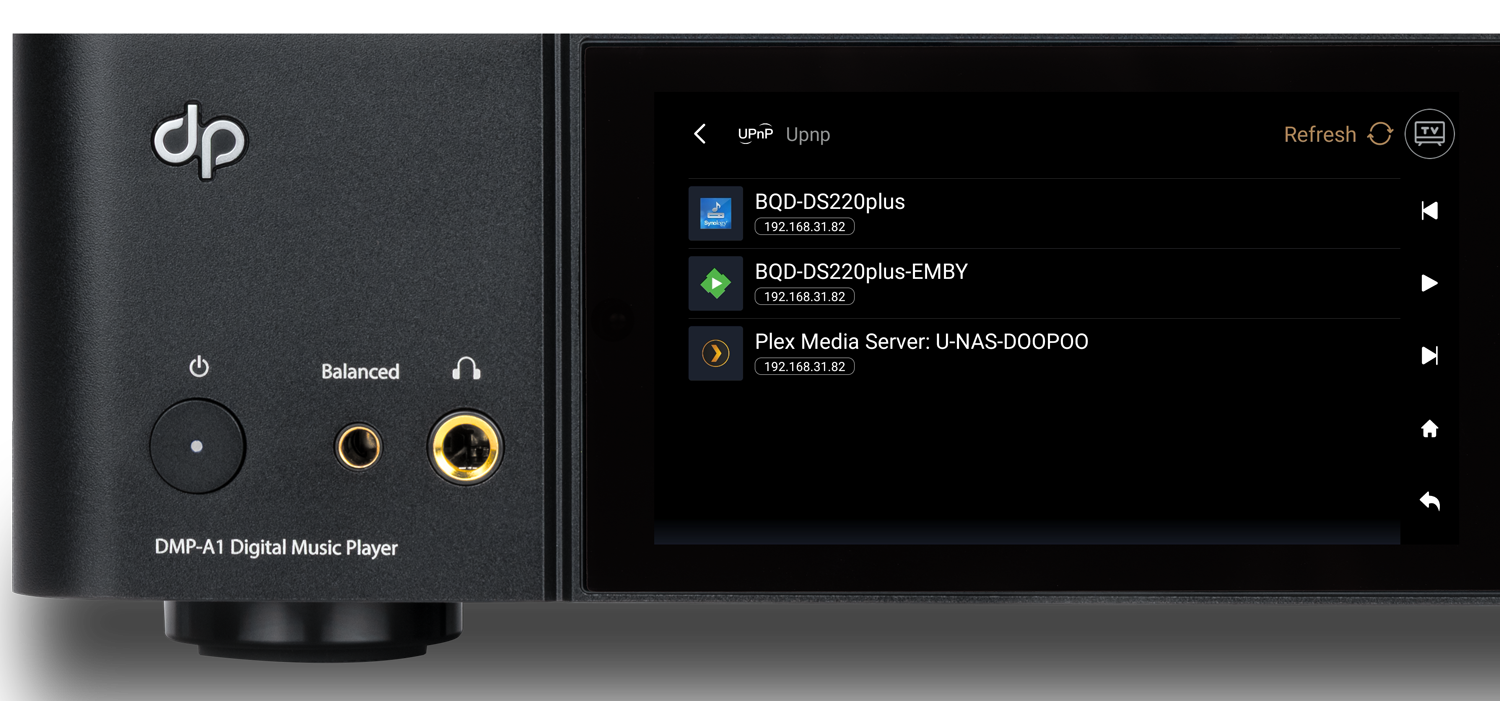

Beyond built-in SSD storage and extensive USB expansion, the DMP-A1 supports LAN NAS access via SMB or NFS protocols for quick playback of high-bitrate media files from networked devices. It can also function as an SMB server, allowing other devices on the local network to access and manage shared storage via IP for greater flexibility.

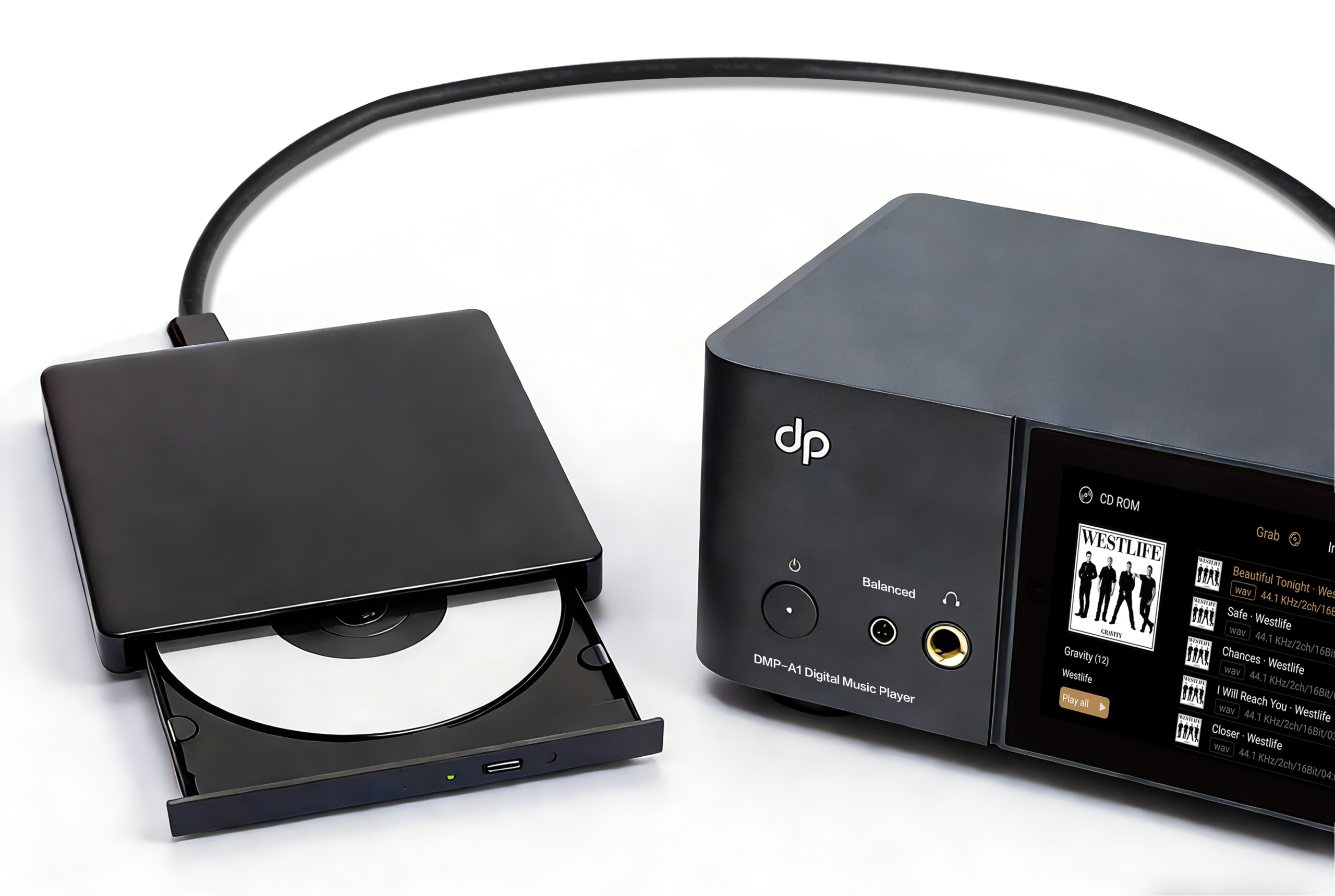

The DMP-A1 supports external USB optical drives for CD playback and ripping. Negating the need for an additional expensive CD player, you can enjoy your treasured physical album collections anytime, making your music experience more diverse and enriching.

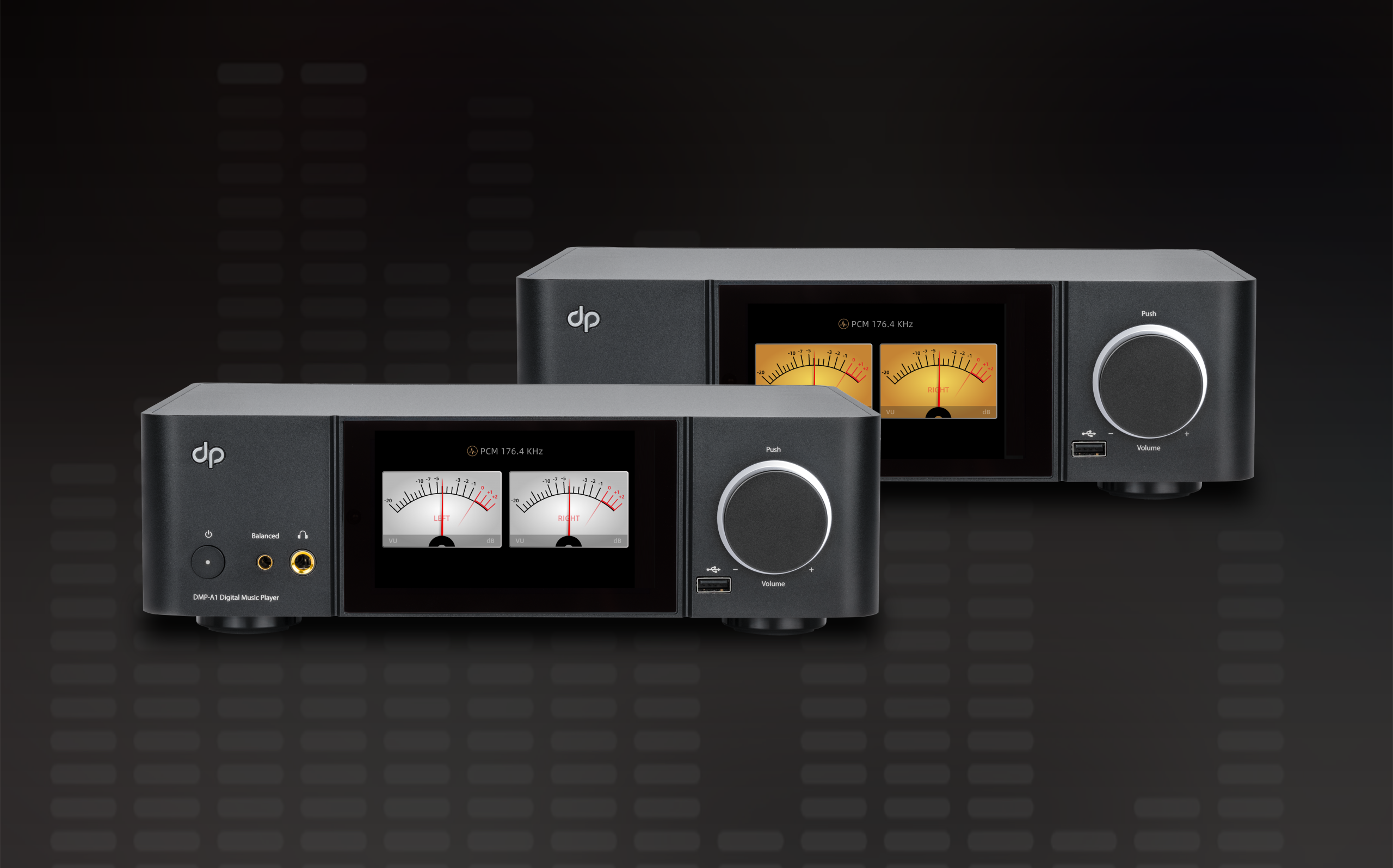

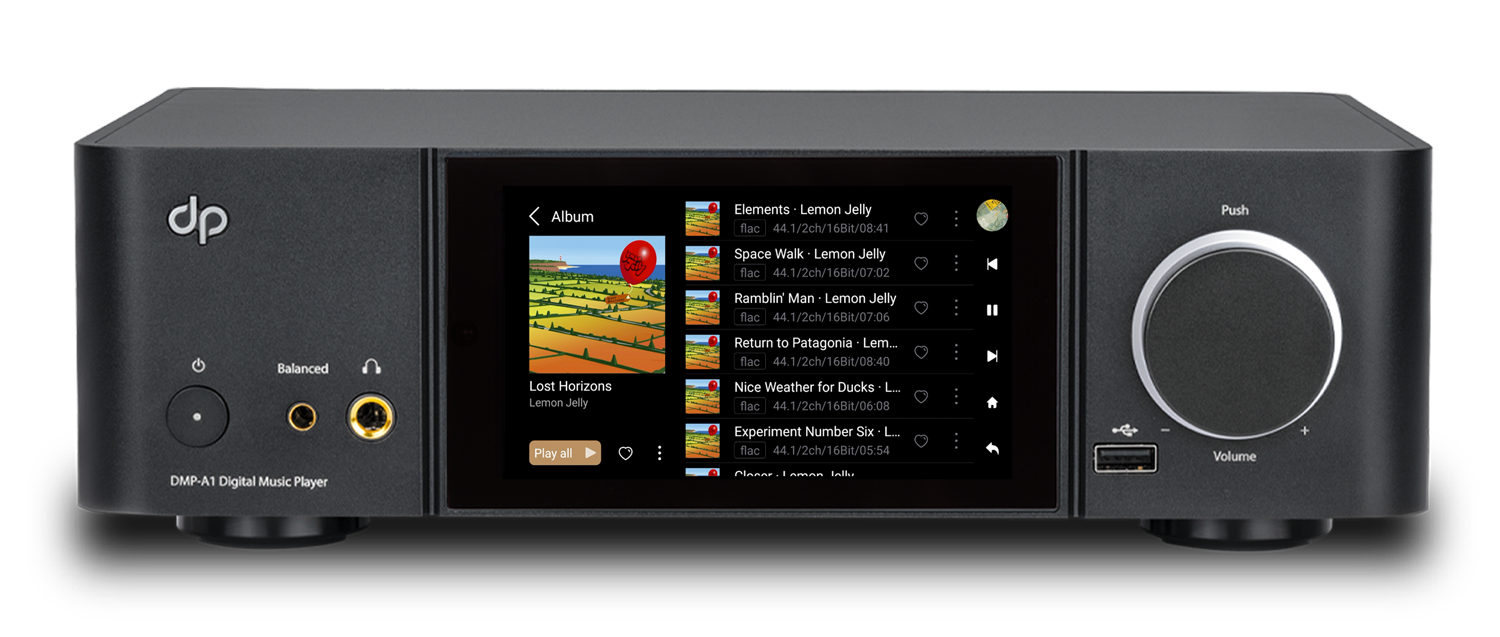

The music player offers multiple customized playback interfaces for audiophiles, including dynamic VU meters and spectrum display styles, with one-touch switching support for all music formats.

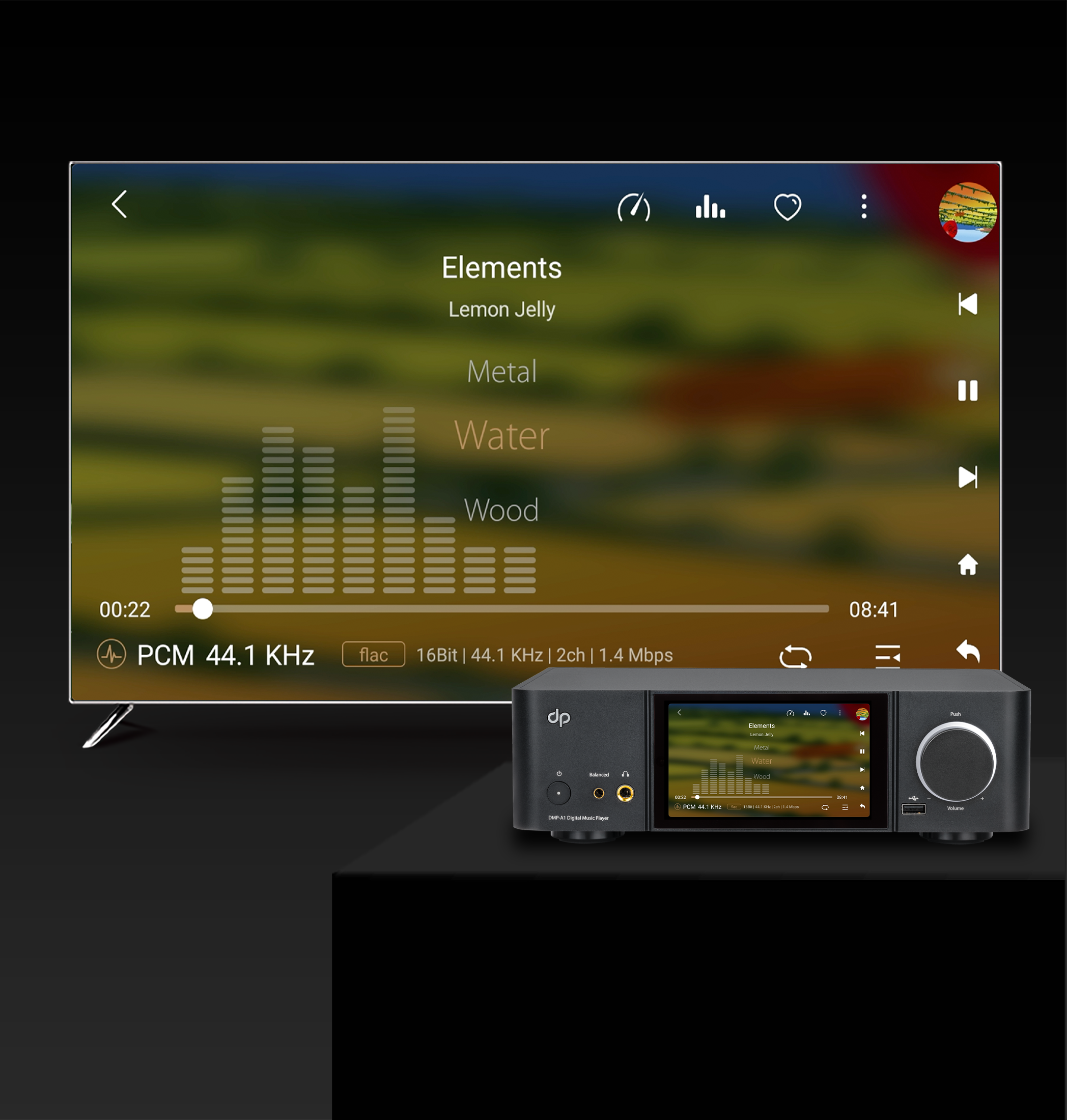

Dual Display Support for a Big-Screen Experience

In addition to its onboard screen UI, the DMP-A1 supports HDMI output for large-screen connectivity, meeting the needs of digital music playback on bigger displays. It also enables synchronized display and control between the HDMI output and the built-in screen.

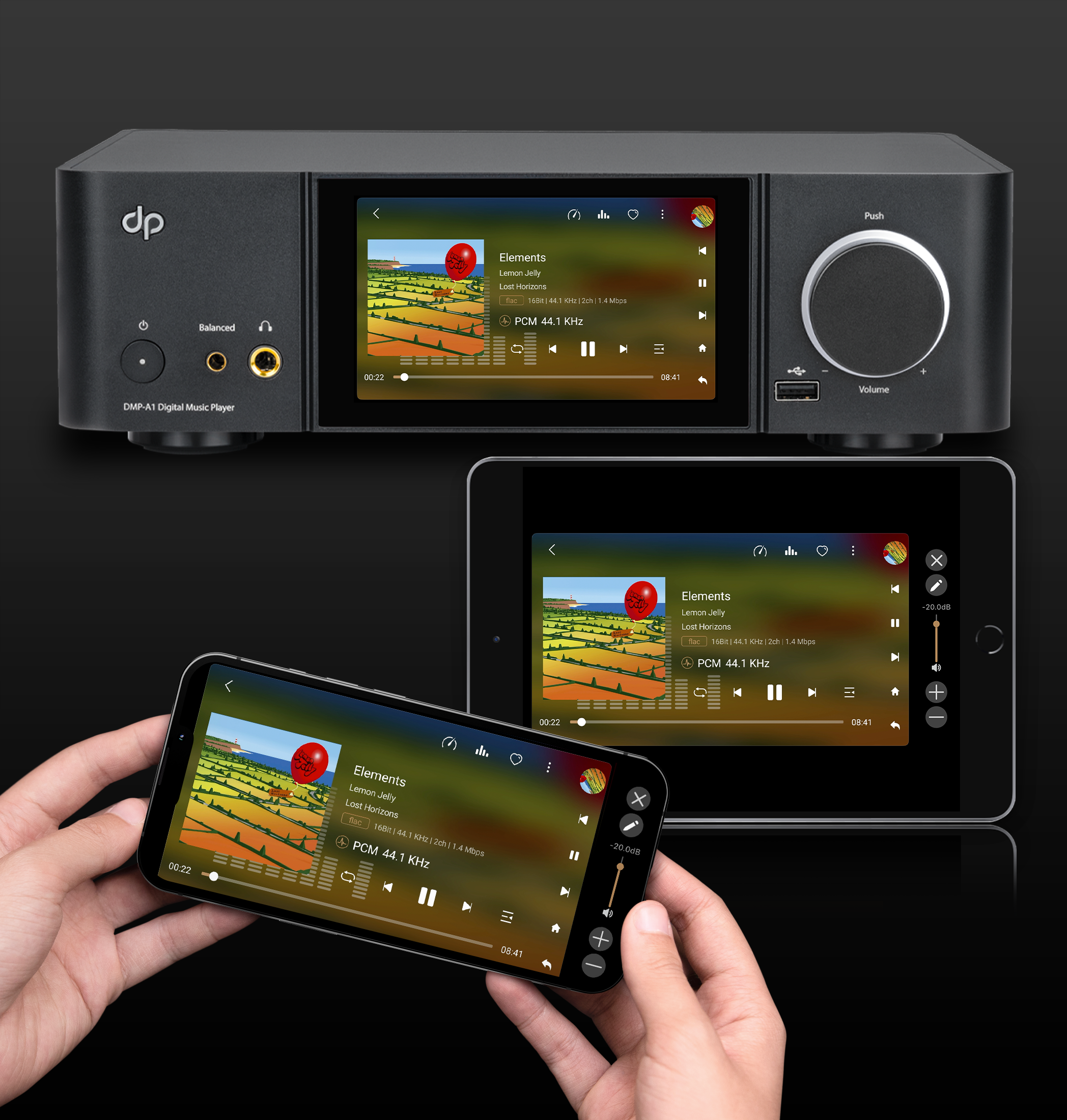

The DMP-A1 can be controlled via a dedicated smartphone app. Simply download and install the dp SmartController app (available for both iOS and Android), and through network communication, you can manage nearly all functions and system settings of the DMP-A1, either through the app screen or by mirroring the DMP-A1 main screen. It supports file browsing, synchronised music data viewing, mirror-screen interactive control, and third-party app control, delivering a more convenient and intuitive operation experience.

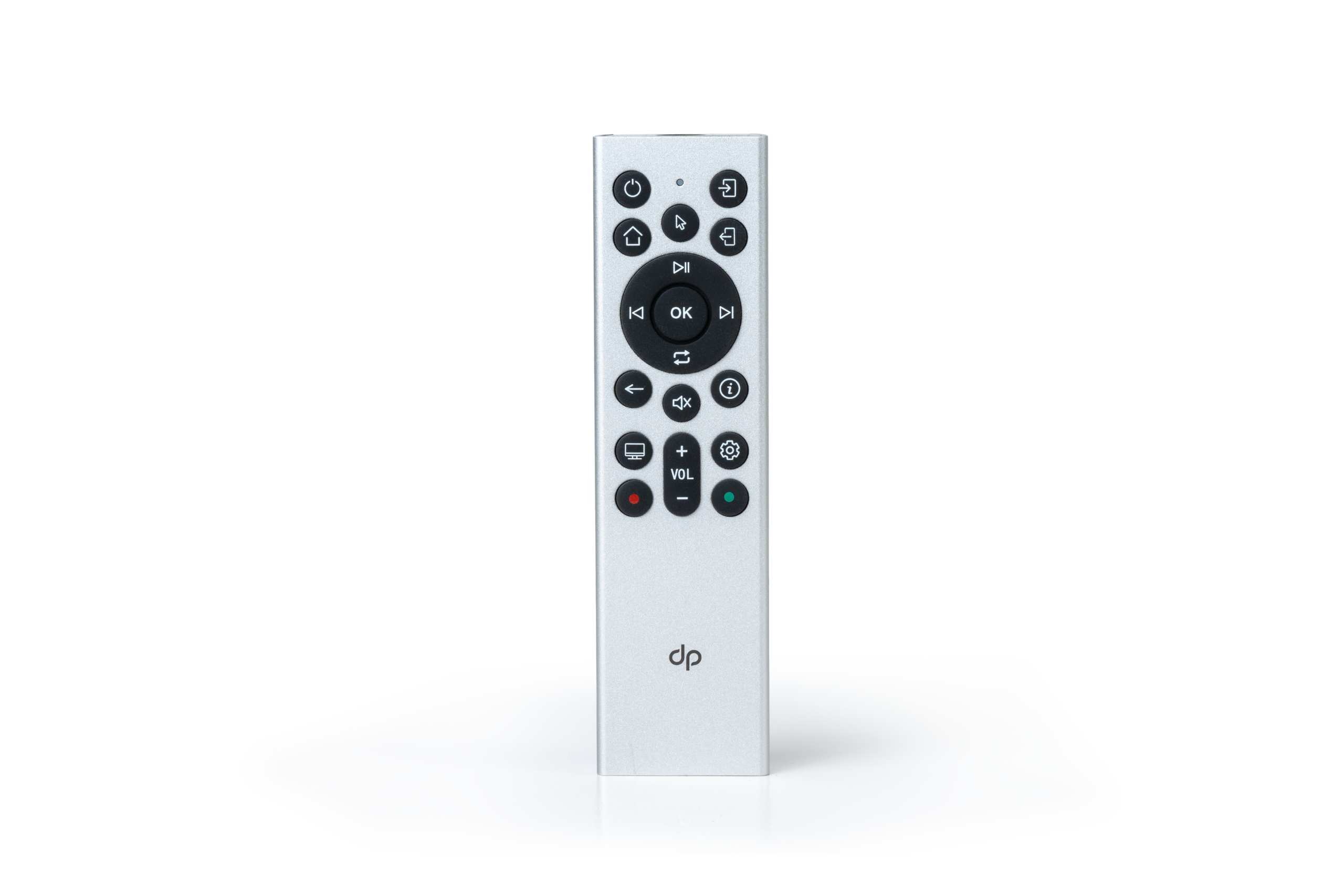

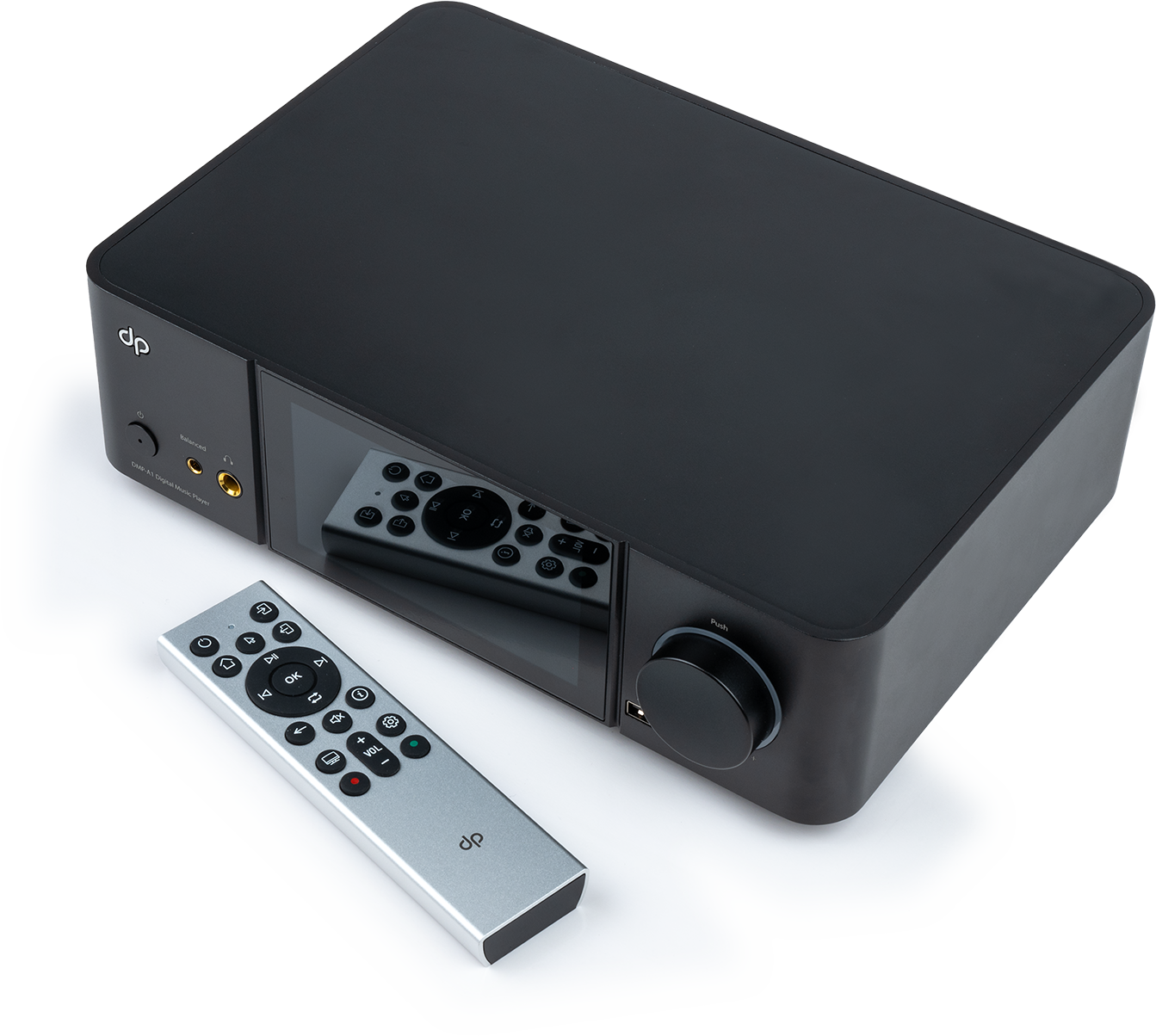

The DMP-A1 offers a wide range of control options to suit your various preferences. In addition to the intuitive touch screen and smart mobile app control, it also comes with a classic aluminum alloy infrared remote, allowing you to effortlessly manage music playback from anywhere and enjoy a truly seamless listening experience.
